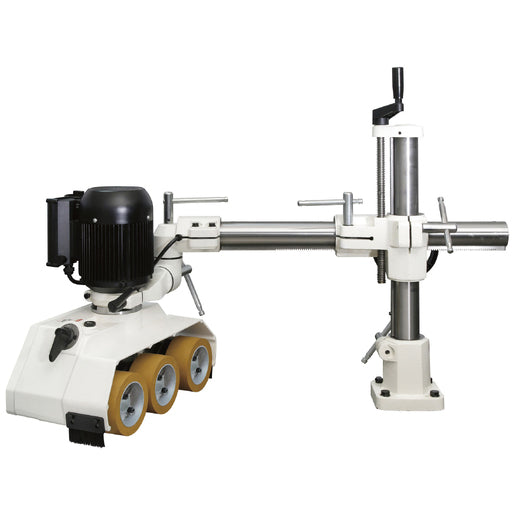

SCM Formula Feed 38 Three-Roller Power Feeder — Three Phase

The SCM Formula Feed 38 is a three-roller power feeder for woodworking workshops that need steady, controlled feeding at a spindle moulder. Its adjustable support and spring-loaded rollers help maintain contact with the workpiece as timber moves through machining.

The feeder provides eight feed speeds from 2 to 33 m/min. Three 120 mm diameter × 60 mm wide rollers offer an 18 mm excursion to accommodate variation in the workpiece while maintaining a consistent feed.

A mechanical selector adjusts feed speed, and the support allows adjustment in multiple directions to suit the machine and machining setup. The listed Australian configuration is three-phase; confirm electrical connection requirements for the supplied unit before ordering.

Key features and specifications

• Three feed rollers
• Eight feed speeds: 2/4/5.5/7/11/13/16.5/33 m/min
• Rollers: 120 mm diameter × 60 mm wide
• Roller excursion: 18 mm
• Adjustable support with multi-direction positioning
• Mechanical feed-speed selector

Suitable applications

• Feeding timber toward a spindle moulder during suitable machining operations
• Supporting consistent, repeatable workpiece feed in woodworking workshops

Images may show optional equipment or accessories. Please confirm the exact supplied machine configuration and electrical requirements before ordering.
