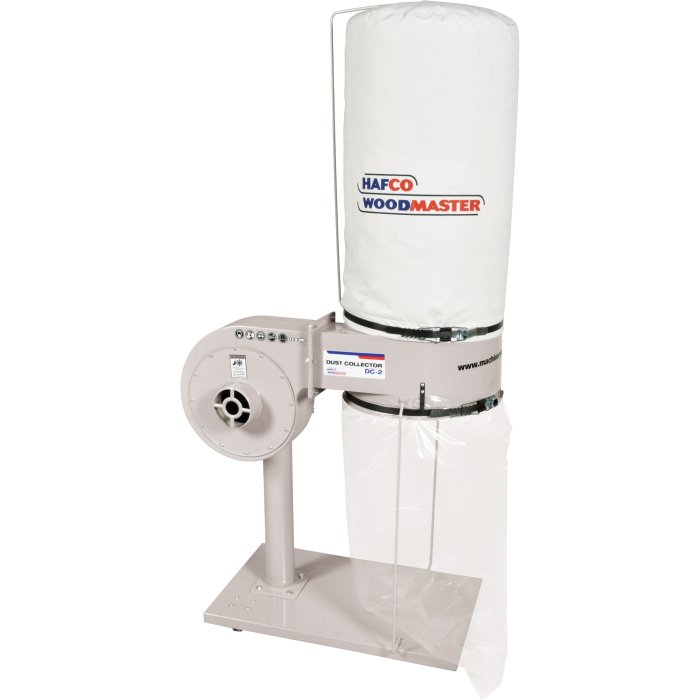

Hafco DC-2 Woodmaster Dust Extractor - (W332)
Regular price
$365.00
inc GST
Couldn't load pickup availability
DC-2 - Dust Collector
1HP
500cfm - LPHV System
Overview
LPHV = Low Pressure High Volume System
The dust and shavings of LPHV extractors are sucked through the impeller fan blade and then the waste falls into the lower bag, the air being exhausted through the top filter bag, collecting some of the fine dust on the way. This type of extraction shifts huge volumes of air at low pressure and they are very efficient at removing bulk waste such from Planers, Thicknessers & Wood Lathes etc, hence some people call them chip collectors. The down fall with all LPHV dust collector systems is when you reduce the intake hose from 100mm to 32mm the air flow volume is affected dramatically.
The dust and shavings of LPHV extractors are sucked through the impeller fan blade and then the waste falls into the lower bag, the air being exhausted through the top filter bag, collecting some of the fine dust on the way. This type of extraction shifts huge volumes of air at low pressure and they are very efficient at removing bulk waste such from Planers, Thicknessers & Wood Lathes etc, hence some people call them chip collectors. The down fall with all LPHV dust collector systems is when you reduce the intake hose from 100mm to 32mm the air flow volume is affected dramatically.
Features
- 500cfm
- Portable on wheels
- Ø100mm single inlet
- Quick-action clamps
- 5 Micron Fine Filter Bag
- 0.75kW / 1hp 240V motor
- Magnetic safety switch
