Hafco DC-3 Woodmaster Dust Extractor - (W394)
Regular price
$630.00
inc GST
Couldn't load pickup availability

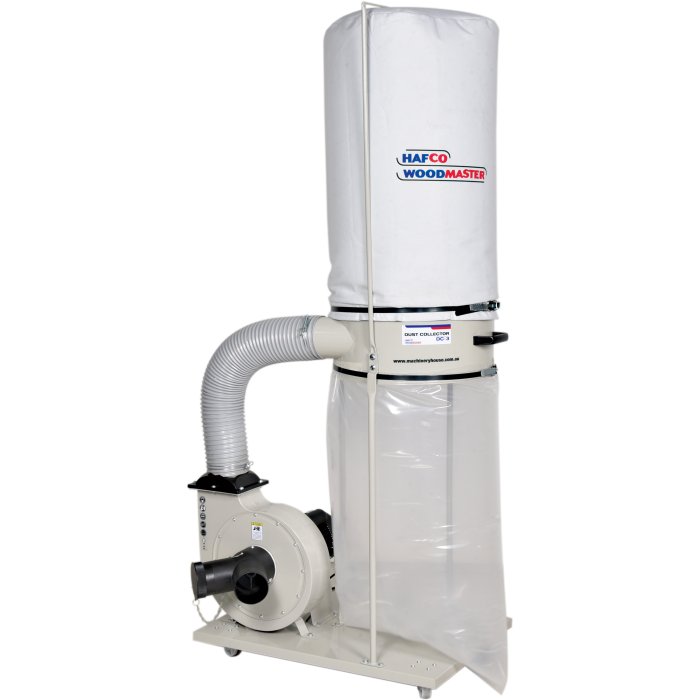

DC-3 - Dust Collector
2HP
1200cfm - LPHV System
Overview
LPHV = Low Pressure High Volume System
The DC-3 is a low-pressure high-volume dust collector (LPHV), dust and shavings of LPHV extractors are sucked through the impeller fan blade, the heavier waste falls into the lower bag with the air being exhausted through the top filter bag which aids in collecting some of the fine dust on the way out. This type of extraction shifts huge volumes of air at low pressure. They are very efficient at removing bulk waste, recommended for Planers, Thicknessers & Wood Lathes etc, hence some people call them chip collectors. The fine filtration efficiency can be improved somewhat by fitting a cyclone and replacing the bag with a cartridge filter.
The DC-3 is a low-pressure high-volume dust collector (LPHV), dust and shavings of LPHV extractors are sucked through the impeller fan blade, the heavier waste falls into the lower bag with the air being exhausted through the top filter bag which aids in collecting some of the fine dust on the way out. This type of extraction shifts huge volumes of air at low pressure. They are very efficient at removing bulk waste, recommended for Planers, Thicknessers & Wood Lathes etc, hence some people call them chip collectors. The fine filtration efficiency can be improved somewhat by fitting a cyclone and replacing the bag with a cartridge filter.
Features
- 1200cfm air flow suction
- Portable on wheels
- Ø100mm twin inlets
- Quick-action clamps
- 5 Micron fine filter bag
- 1.5kW / 2hp 240V motor
