SCM Minimax CU 410C Combination Machine – 410 mm – Three Phase

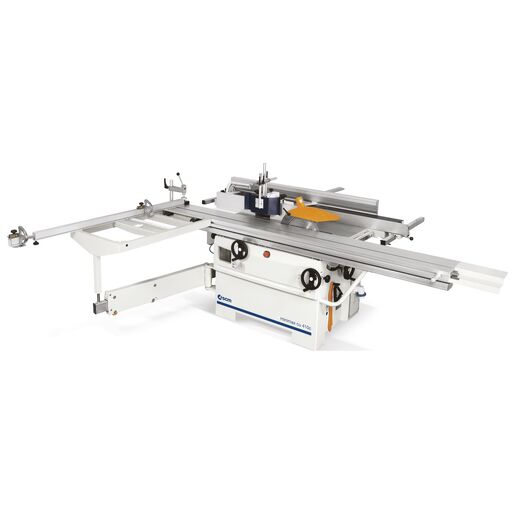

The SCM Minimax CU 410C is a three-phase universal combination machine for woodworking shops, bringing planing, thicknessing, sawing and spindle moulding operations together in one machine. Its planer has a 410 mm useful working width and 1800 mm total surfacing-table length.

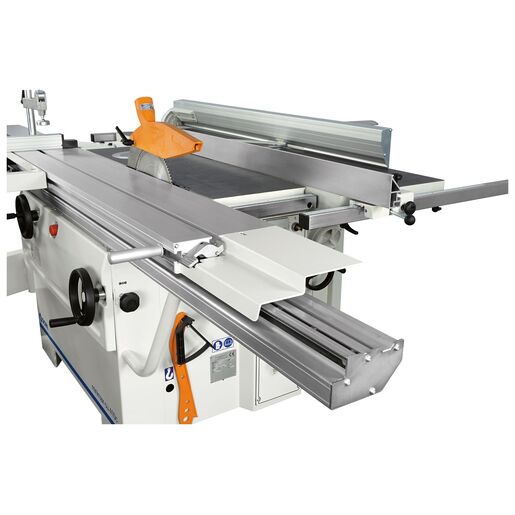

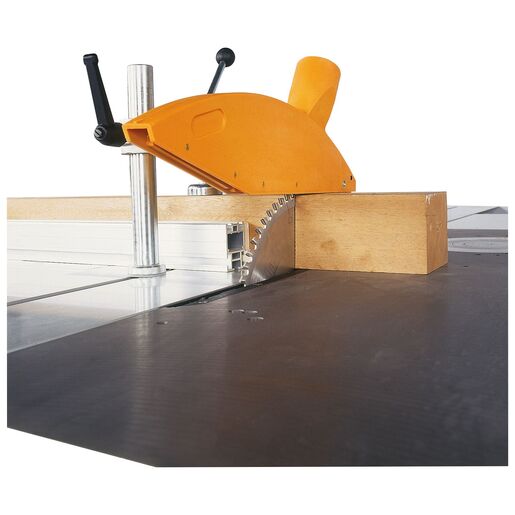

The sliding carriage provides a maximum squaring stroke of 2600 mm, and the parallel fence offers 900 mm cutting width. The saw unit accepts a maximum 315 mm blade diameter with the scoring blade installed; the main saw blade is not included.

This COMP3 configuration includes the Xylent spiral-knife cutter block and uses three-phase motors rated at 5 kW / 6.6 hp / 50 Hz, with a listed supply of 400 V, 50 Hz. It has a 30 mm interchangeable spindle moulder spindle.

Key features and specifications

• 410 mm planer working width; 1800 mm total surfacing-table length
• Maximum stock removal: 4 mm; thicknesser feed: 7 m/min
• Thicknessing height: 3–230 mm; thicknessing table: 605 × 410 mm
• Maximum squaring stroke: 2600 mm; rip width: 900 mm
• 315 mm maximum saw-blade diameter with scoring blade installed; main saw blade not included
• Xylent spiral-knife cutter block included
• Interchangeable spindle: 30 mm diameter, 100 mm useful length; 3500 / 7000 / 10,000 rpm
• Three-phase motors: 5 kW / 6.6 hp / 50 Hz; supply: 400 V, 50 Hz
• 120 mm extraction outlet

Suitable applications

• Planing and thicknessing solid timber
• Ripping, crosscutting and sizing panels
• Spindle moulding with compatible tooling

Images may show optional equipment or accessories. Please confirm the exact supplied machine configuration and electrical requirements before ordering.
