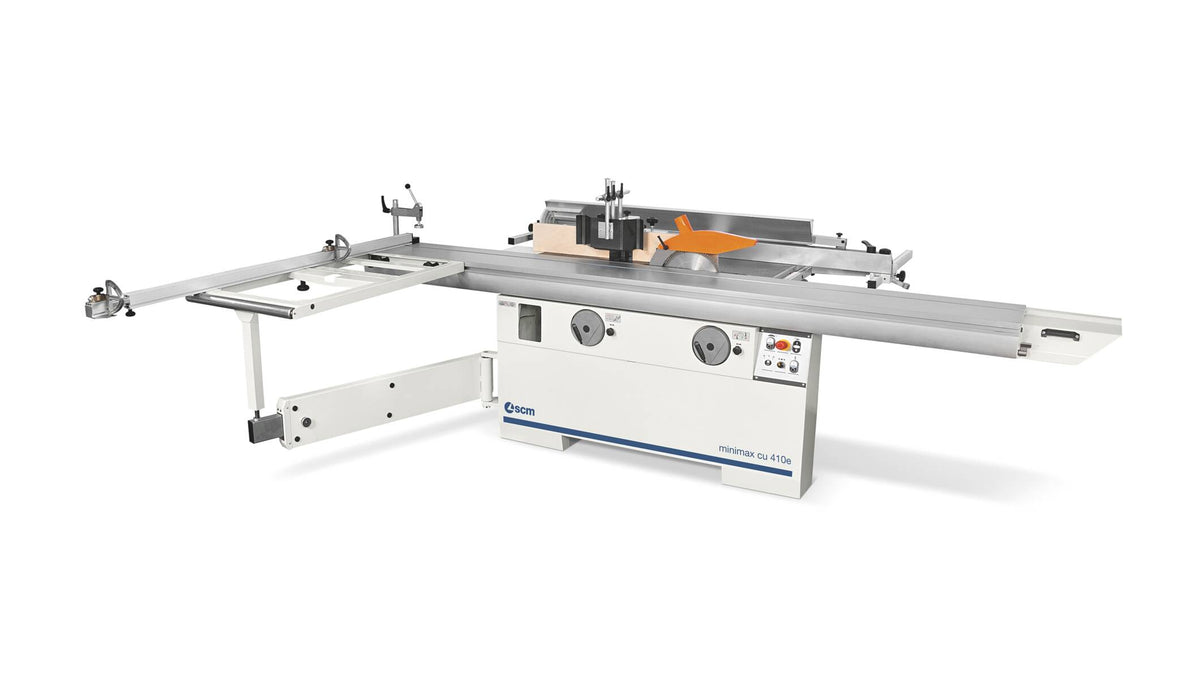

SCM Minimax CU 410E Universal Combination Machine — Three Phase

The SCM Minimax CU 410E is a three-phase universal combination machine for cabinetmakers, joiners and woodworking workshops that need sawing, surfacing, thicknessing and spindle-moulding operations in one machine. The listed Australian configuration combines a 410 mm planer width with a 2600 mm maximum squaring stroke.

The anodised-aluminium sliding carriage runs on hardened steel guides, with a 1200 × 650 mm squaring frame and telescopic fence with two flip-over stops. The saw accepts a blade up to 315 mm with the scoring blade installed and provides up to 100 mm projection at 90°.

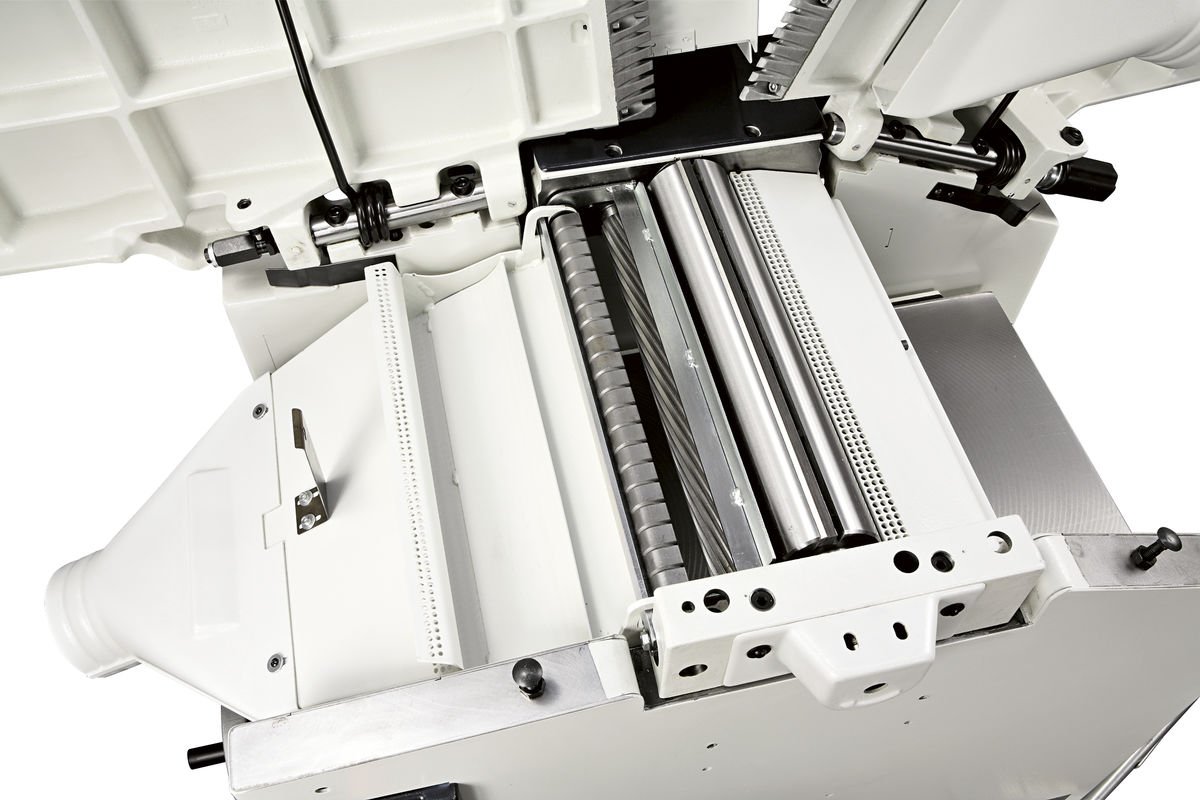

For surfacing and thicknessing, the machine has 2000 mm total surfacing-table length, a helical infeed roller and a sandblasted-steel outfeed roller. Its tilting 30 mm spindle moulder has four speeds from 3500 to 10000 rpm, while the supplied Xylent spiral-knife cutterblock supports clean planing and reduced knife-change effort.

Key features and specifications

• Three-phase configuration: three 5 kW (6.6 hp) motors at 50 Hz
• 410 mm useful planing width; 2000 mm total surfacing-table length
• 2600 mm maximum squaring stroke; 1050 mm cutting width on the parallel fence

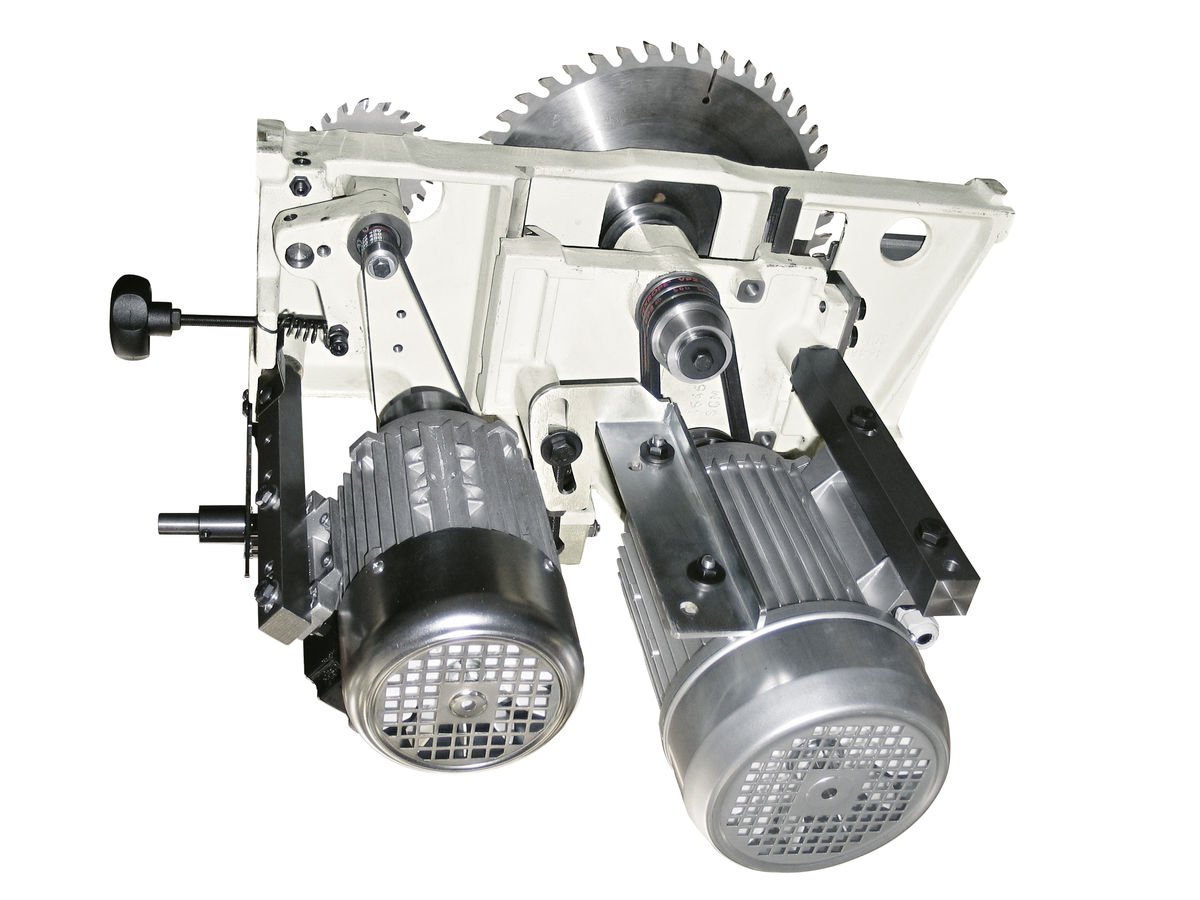

• 315 mm maximum saw blade with scoring blade installed; 100 mm projection at 90° and 71 mm at 45°
• Scoring unit with independent motor and blade included

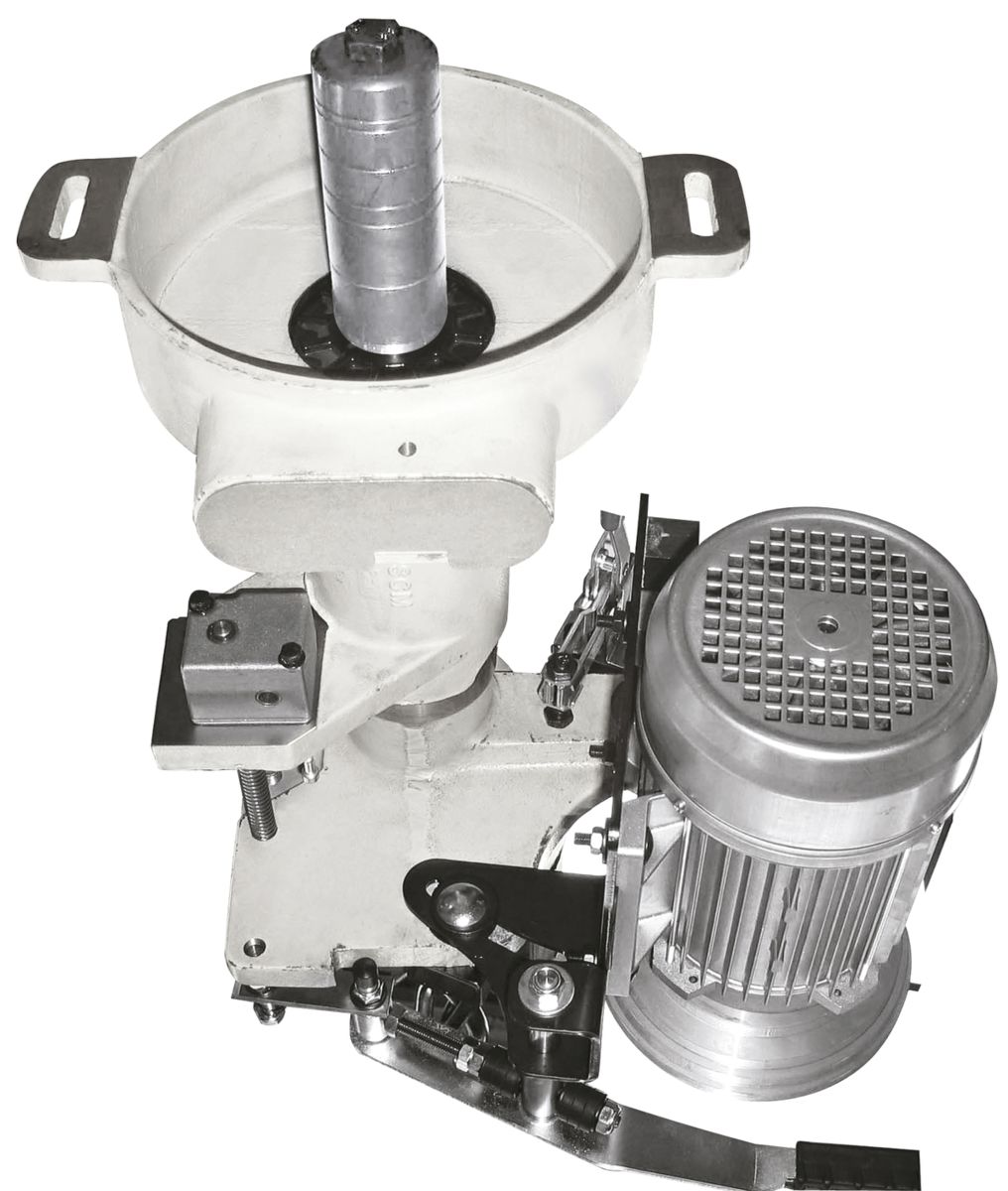

• 30 mm tilting spindle moulder; speeds 3500/6000/8000/10000 rpm
• Supplied Xylent spiral-knife cutterblock with three knife sets
• Maximum spindle length 125 mm; maximum profiling tool diameter 210 mm
• Numerical readouts for unit positioning; power cable not included

Suitable applications

• Ripping, crosscutting and sizing solid timber and sheet materials
• Surfacing and thicknessing stock up to 410 mm wide
• Spindle moulding, profiling and tenoning in a workshop using a suitable configuration

Images may show optional equipment or accessories. Please confirm the exact supplied machine configuration and electrical requirements before ordering.
