SCM Group

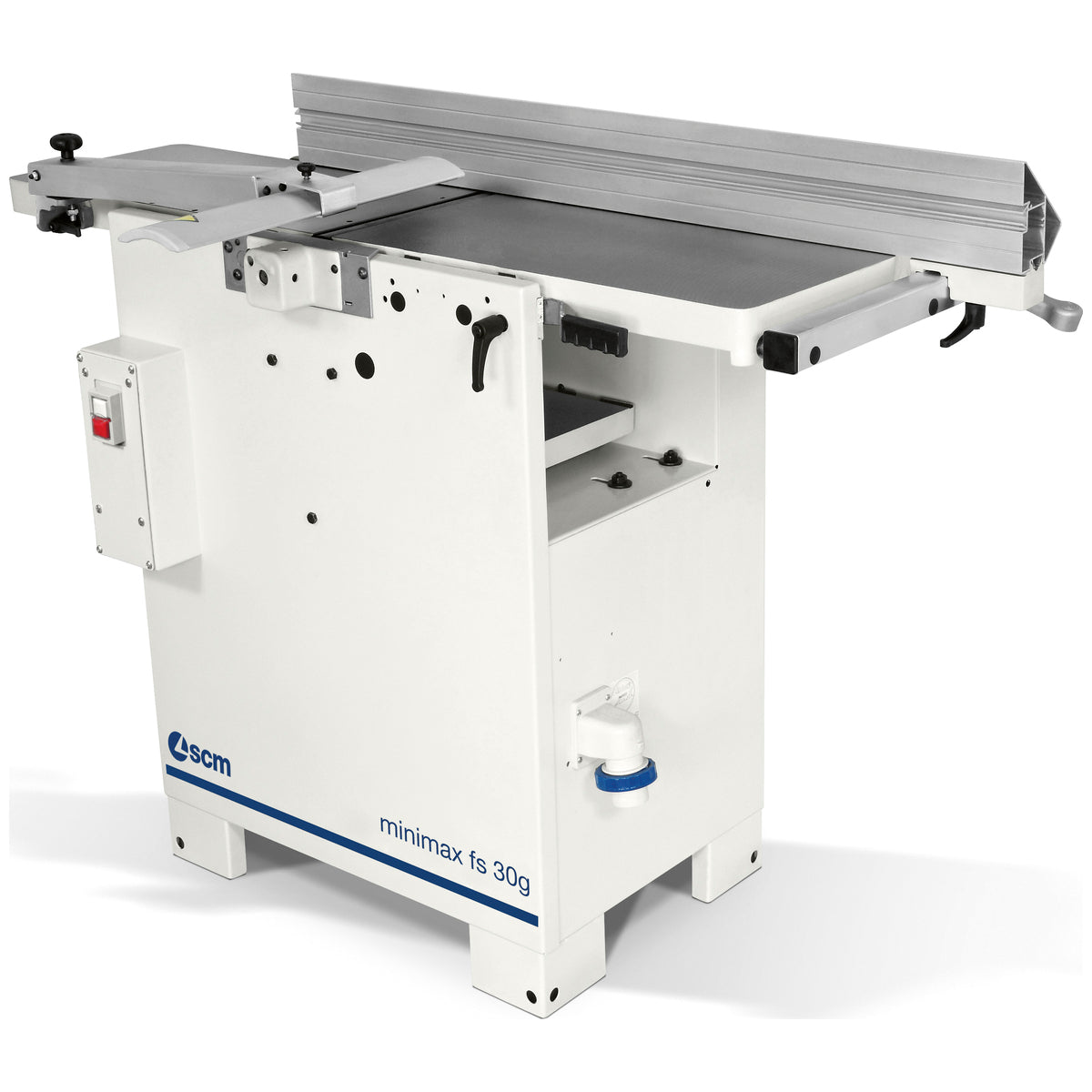

minimax fs 30g X1 Genius Single Phase 2.5HP

Special Order
SKU: SCM-FS30G
$6,670.40 inc GST

Product details

  • SKU SCM-FS30G
Description

Experience the precision of the minimax fs 30 genius, a compact surfacer/thicknesser combination. With its large surfacer and oversized fence, it effortlessly straightens and dresses large workpieces. The 300mm cutter block, 1200mm surfacing table, and powerful 2.5hp motor deliver exceptional performance. From hardwoods to softwoods, the FS30 Genius handles it all with ease.

  • Surfacer working width: 300m wide capability
  • Surfacing tables: 1200mm length or width for material placement
  • Thickness table dimensions: 300 x 450mm for adjusting material thickness
  • Feed speed: 6m/min for rapid material movement
  • Max thickness capacity: Up to 200mm thickness accommodated
  • Min thickness capacity: Minimum 3mm thickness suitable


MACHINE CONFIGURATION
(Options and accessories included with this machine)

  • minimax fs 30g CE version
  • "Xylent" spiralknife cutterblock with 3 series of knives
  • Single-phase motor 1,8kW (2,5hp) 50Hz
TECHNICAL DATA
Working width mm 300
Cutterblock diameter / no. of standard knives mm / no. 62/2
Dimension of standard knives mm 300 x 25 x 3
Max. stock removal mm 3
Surfacing tables total length mm 1200
Thicknessing table dimensions mm 300 x 450
Feed speed on thicknesser m/min 6
Min. ÷ max. workign height on thicknesser mm 3 ÷ 200
