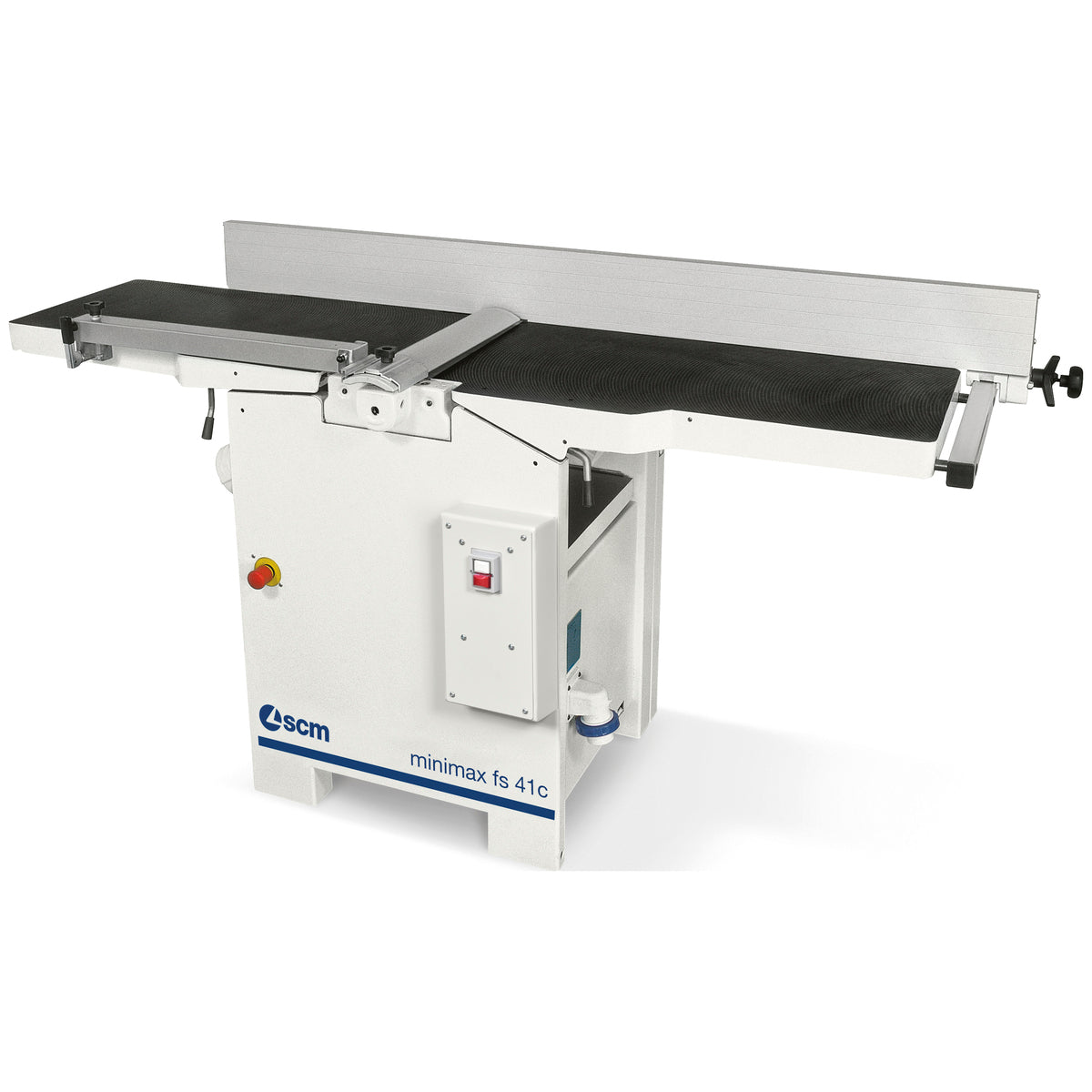

SCM Minimax FS 41C Planer Thicknesser – 410 mm – 240 V

The SCM Minimax FS 41C is a surfacing-thicknessing machine for joiners and woodworking workshops that need jointing and thicknessing in one machine. Its 410 mm working width suits wider boards and components.

The standard cutterblock has a 72 mm diameter and three knives. The machine has 1800 mm total jointing-table length and a 7 m/min thicknesser feed speed.

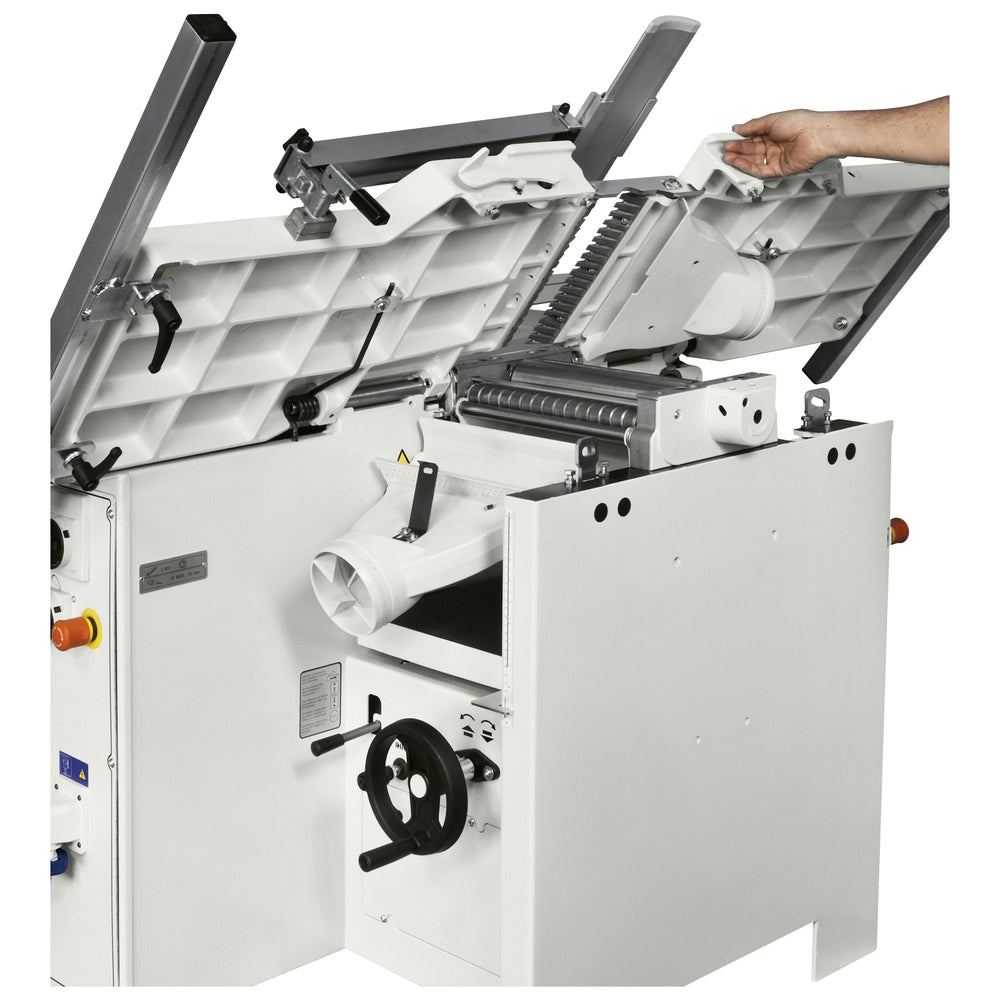

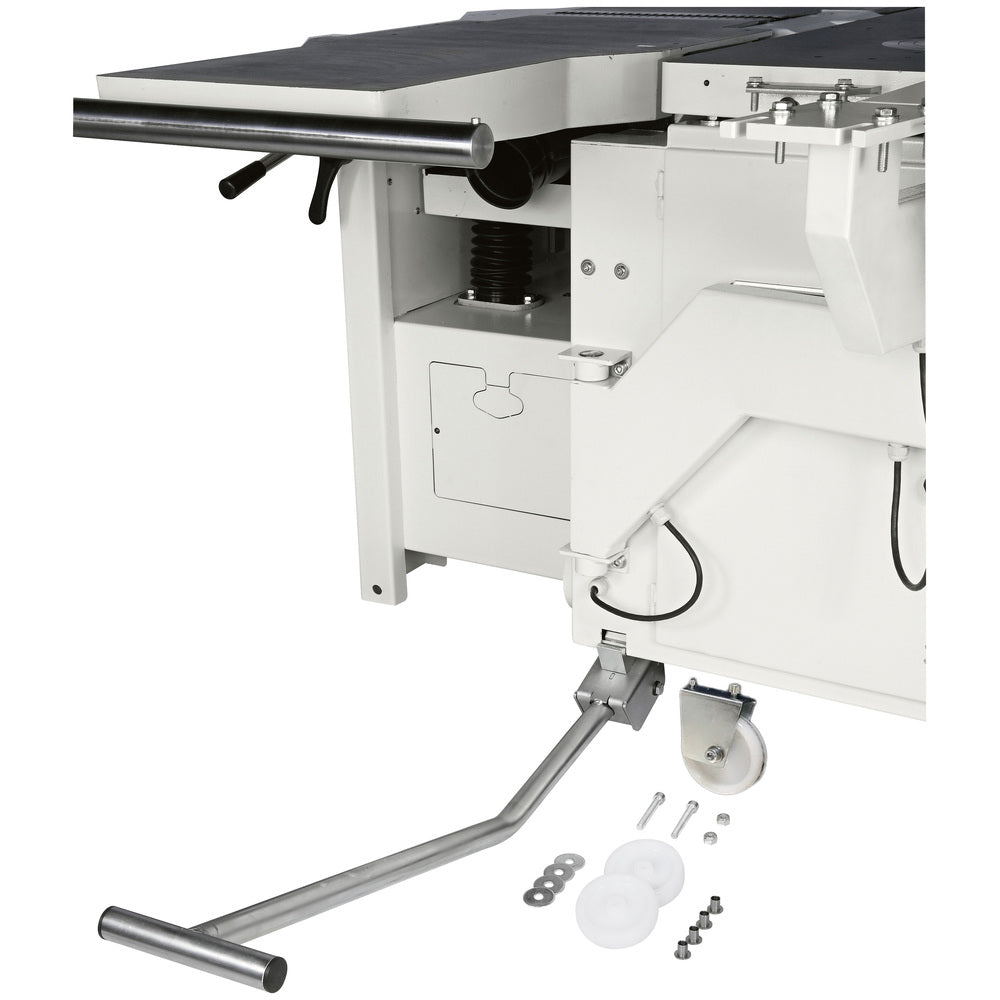

A gravity-readout handwheel positions the thicknessing table, and machine-movement wheels are included. The listed motor is 3 kW (4 hp), single phase, 50 Hz.

Key features and specifications

• 410 mm working width; maximum stock removal 4 mm
• Standard cutterblock: 72 mm diameter, three knives
• 1800 mm total jointing-table length; thicknesser table 410 × 605 mm
• Thicknessing range 3–230 mm; feed speed 7 m/min
• Single-phase 3 kW (4 hp), 50 Hz

Suitable applications

• Jointing board faces and edges before assembly
• Thicknessing solid timber for furniture, cabinetry and joinery work

Images may show optional equipment or accessories. Please confirm the exact supplied machine configuration and electrical requirements before ordering.
