minimax fs 41e Single Phase 4HP

Special Order
SKU: SCM-FS40E1
Regular price $18,095.00 inc GST

Product details

  • SKU SCM-FS40E1

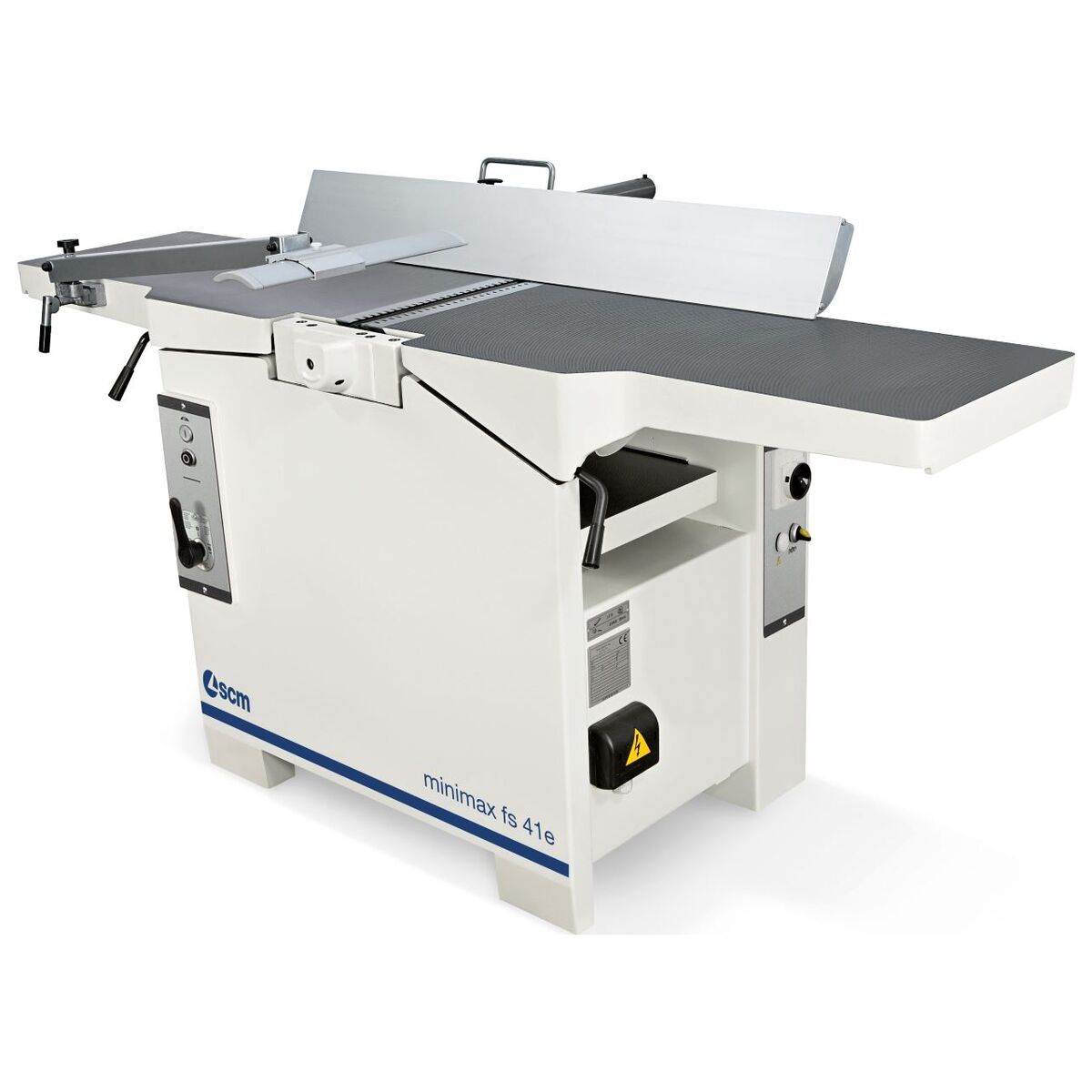

The fs 41e jointer/planer combination machine can guarantee an optimal planing with minimal effort, thanks to Xylent cutter block. The pressure of the thicknesser feed rollers can be adjusted according to the type of wood machined to obtain a flawless finishing.

Professional, massive and compact, this machine is suitable for a high-flexible production and ideal for the demanding craftsman and carpentry.

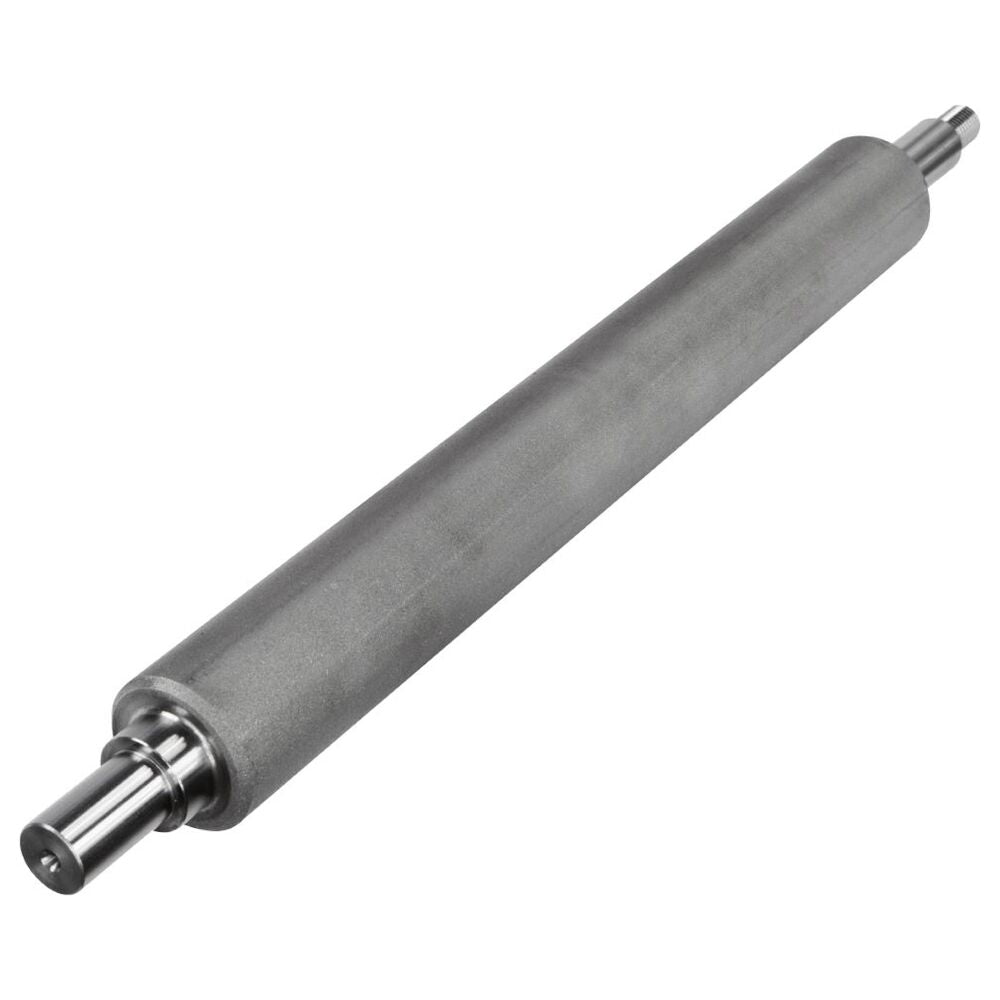

For an impeccable finish, the pressure of the thicknesser feed rollers can be adjusted according to the type of wood machined

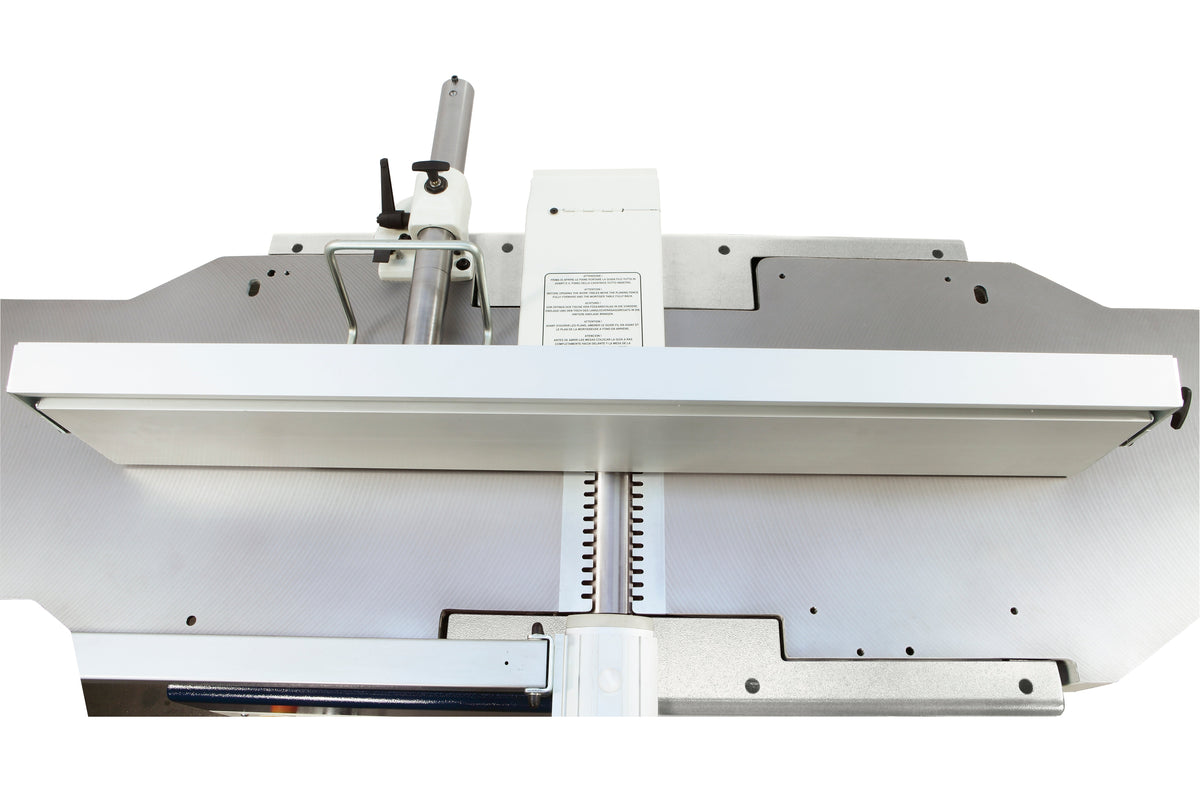

High rigid fence with a smooth movement thanks to the central locking on round bar
The “Xylent” spiralknives cutter block gives an exceptional finish with reduced noise during machining thus to provide a more comfortable working environment
Additional overturning fence for thin work pieces.

It ensures optimum operator safety when machining thin work pieces.





MACHINE CONFIGURATION
(Options and accessories included with this machine)

  • Single-phase motor 3kW (4Hp) - 240V-50Hz

TECHNICAL FEATURES



Planer:



Useful working width

mm

410

Cutter block diameter

mm

87

Max. stock removal

Mm

5

Surfacing tables total length

mm

2000

Thicknessing table dimensions

mm

423 x 775

Feed speeds on thicknesser

m/min

6/12

Min. ÷ max. working height on thicknesser

mm

3 ÷ 230

Min. working length on thicknesser

mm

160

Other technical features:



Single-phase motor

kW (hp) Hz

3 (4) 50

Exhaust outlets diameter

[mm]

120
