SCM Minimax LAB 300P Combination Machine – 300 mm, 1600 mm Table – 240 V

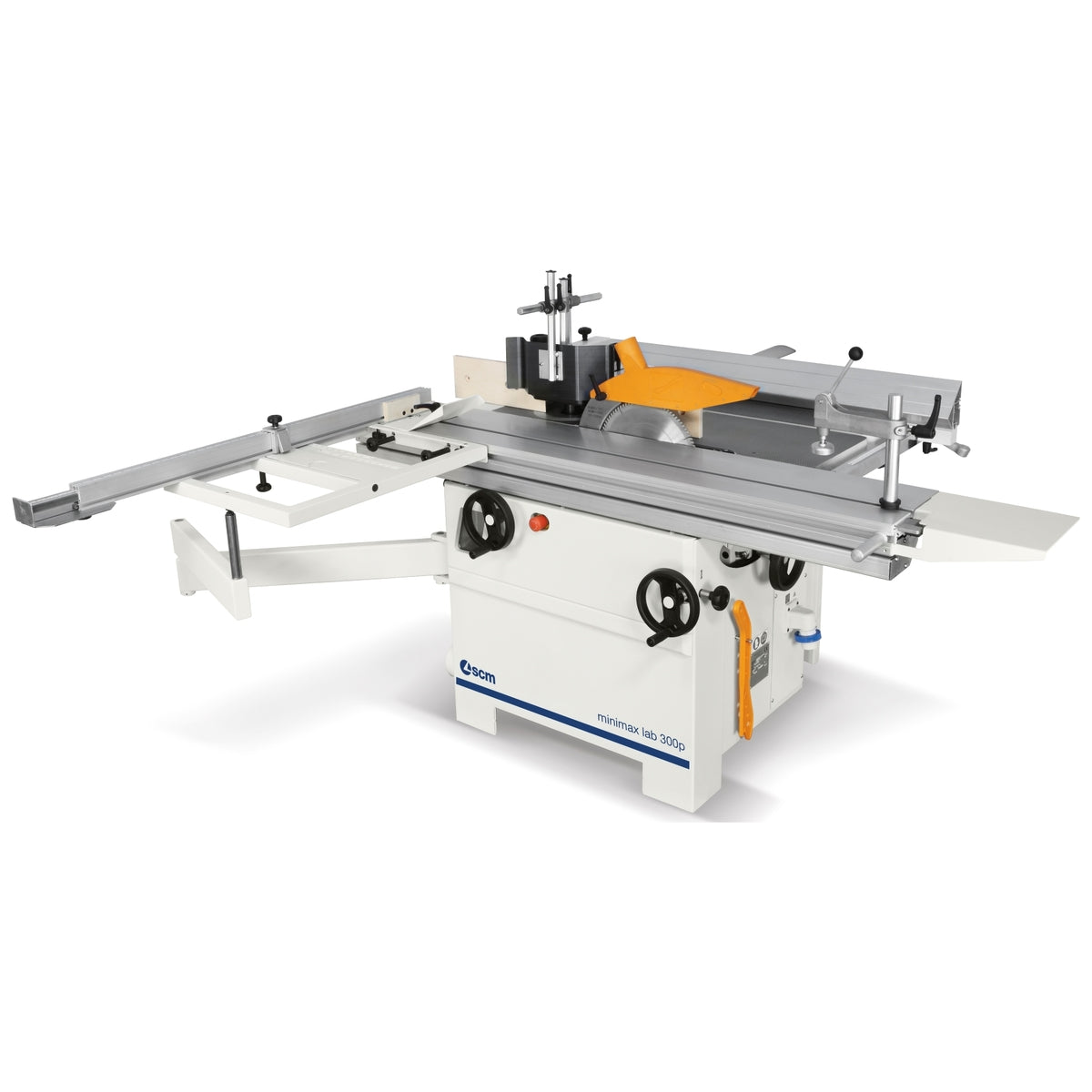

The SCM Minimax LAB 300P X1 is a single-phase universal combination machine for workshops that need surfacing, thicknessing, sawing and spindle-moulding operations in one machine.

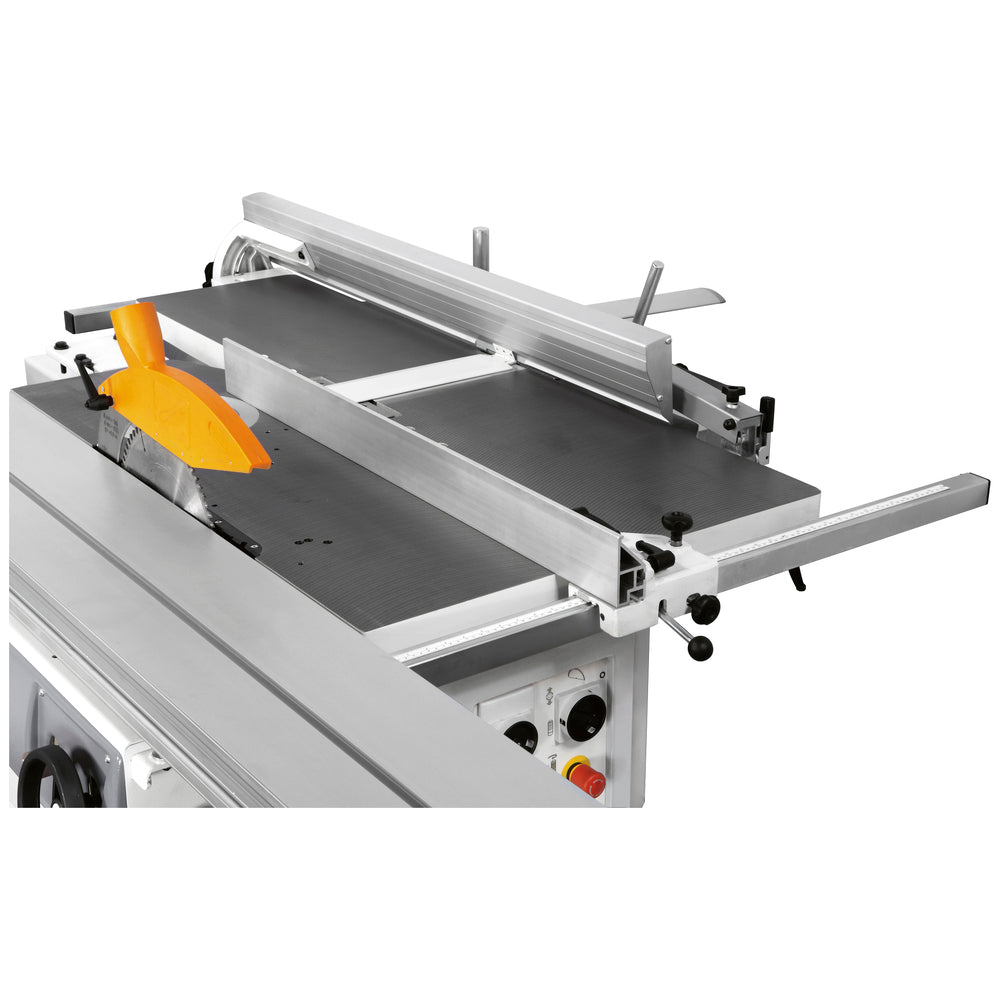

The sliding-table saw has a maximum squaring stroke of 1600 mm, 800 mm rip capacity and a 315 mm maximum blade diameter with the scoring blade installed. The jointer bed is 1300 mm long.

This configuration includes the belt-driven scoring unit and blade, professional fences and an interchangeable spindle. It uses a 2.2 kW (3 hp), 240 V, 50 Hz single-phase motor.

Key features and specifications

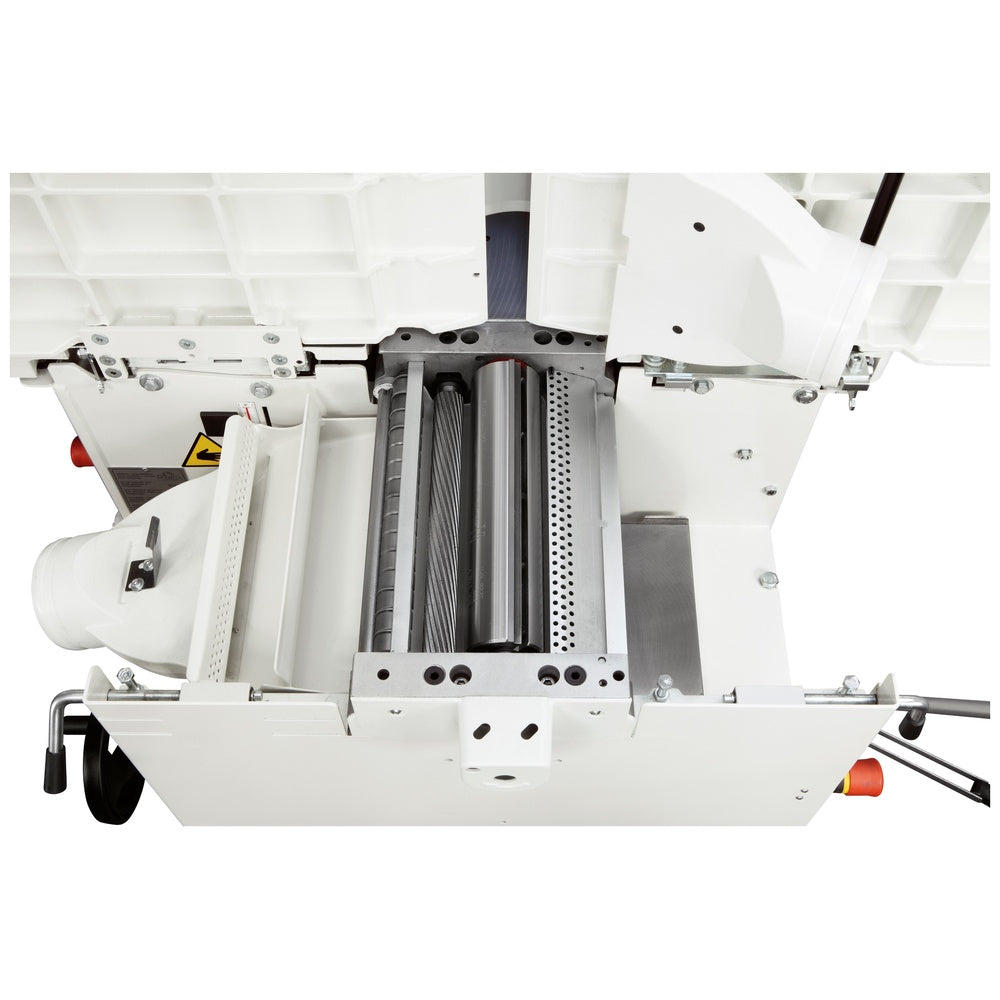

• 300 mm cutterhead working width; 1300 mm jointer-bed length
• 1600 mm maximum squaring stroke; 800 mm rip capacity
• 315 mm maximum sawblade diameter with scoring blade installed
• Spindle speeds 4000/7000/9000 rpm; 30 mm spindle shaft
• Includes belt-driven scoring unit and blade, professional fences and interchangeable spindle
• Single phase 2.2 kW (3 hp), 240 V, 50 Hz

Suitable applications

• Small workshops combining surfacing, thicknessing, sawing and spindle-moulding tasks
• Producing joinery and furniture components where space is limited

Images may show optional equipment or accessories. Please confirm the exact supplied machine configuration and electrical requirements before ordering.
