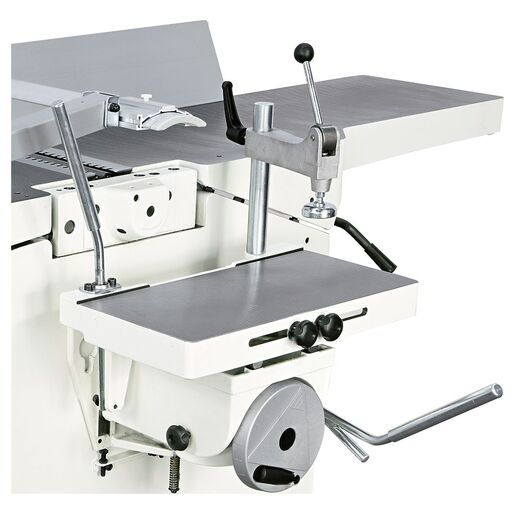

SCM Minimax 777309 Cast Iron Mortiser Attachment

The SCM Minimax 777309 Cast Iron Mortiser is an attachment for selected Minimax combination machines. It is supplied with a 16 mm chuck and a 120 mm diameter dust-extraction hood.

SCM lists the 777309 for the Minimax CU 410C, CU 300C, FS 30C, FS 41C, CU 410E, FS 41E, CU 410ES, FS 41ES, FS 52ES, F 52ES and F 41ES. Confirm your exact machine model before ordering.

The 470 × 230 mm worktable has X, Y and Z travel of 160 mm, 120 mm and 110 mm respectively. This listing is for the mortiser attachment only; the compatible machine is not included.

Key features and specifications

• SCM part number 777309
• 470 × 230 mm worktable
• X-axis travel: 160 mm
• Y-axis travel: 120 mm
• Z-axis travel: 110 mm
• 16 mm chuck
• 120 mm diameter dust-extraction hood
• Compatible with selected Minimax CU, FS and F models listed above

Suitable applications

• Drilling holes and cutting mortises in timber workpieces on a compatible Minimax combination machine

This listing is for the SCM 777309 mortiser attachment only; the compatible woodworking machine is not included. Confirm fitment with your exact model before ordering.
