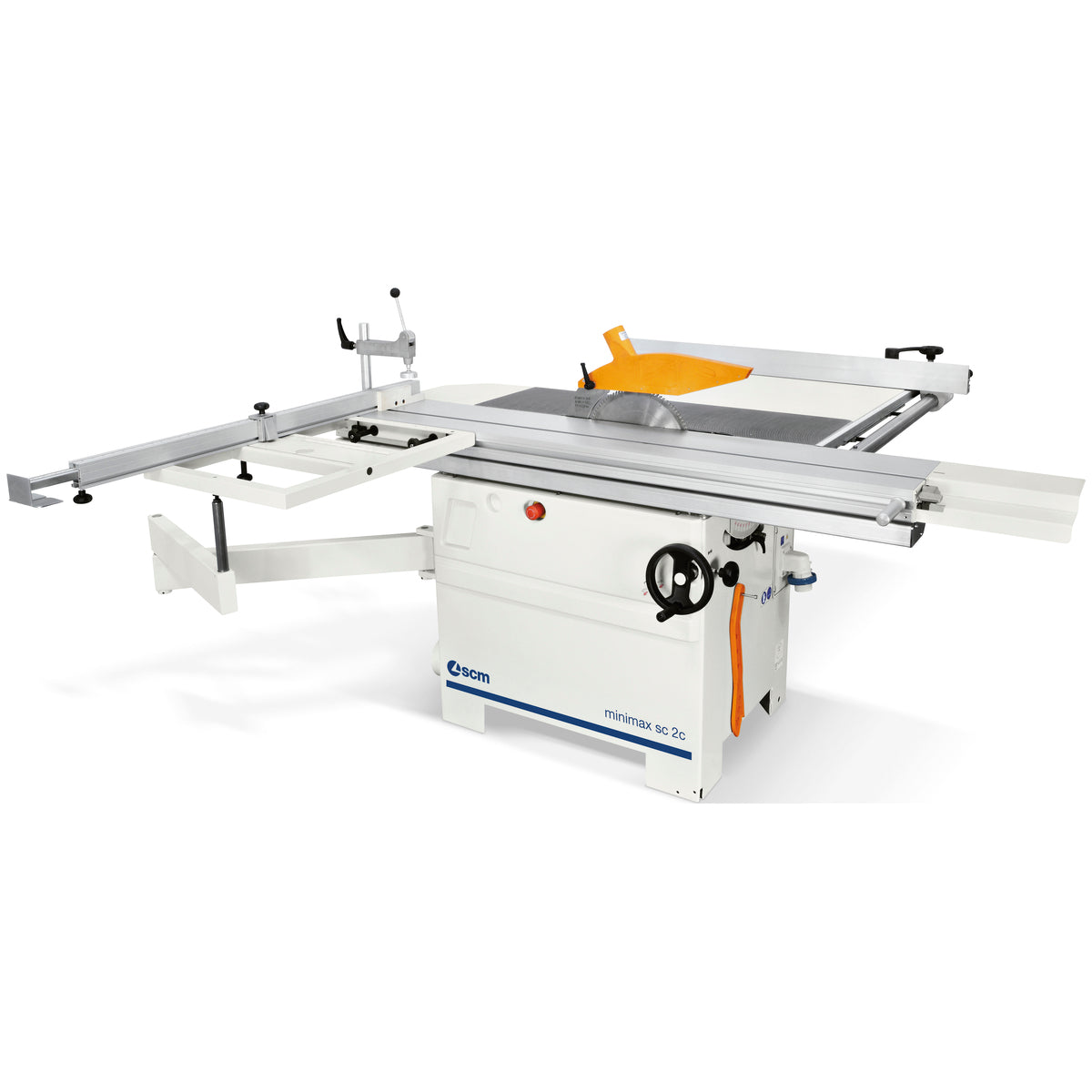

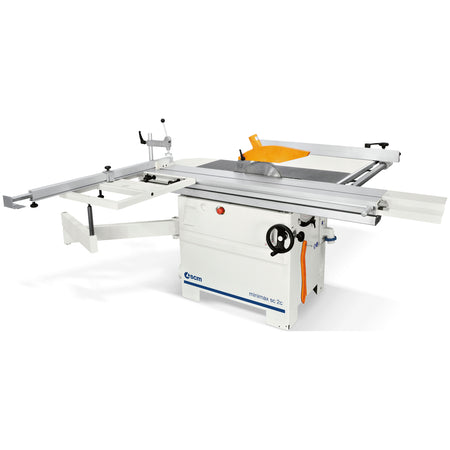

SCM Minimax SC 2C Sliding Table Saw – 1600 mm Table, 900 mm Rip – 240 V

The SCM Minimax SC 2C is a compact single-phase sliding table saw for cabinetmakers, joiners and woodworking workshops requiring accurate ripping, crosscutting and panel sizing. Its 1660 mm squaring stroke and 900 mm rip capacity provide practical sheet and solid-timber processing capability without the footprint of a larger industrial panel saw.

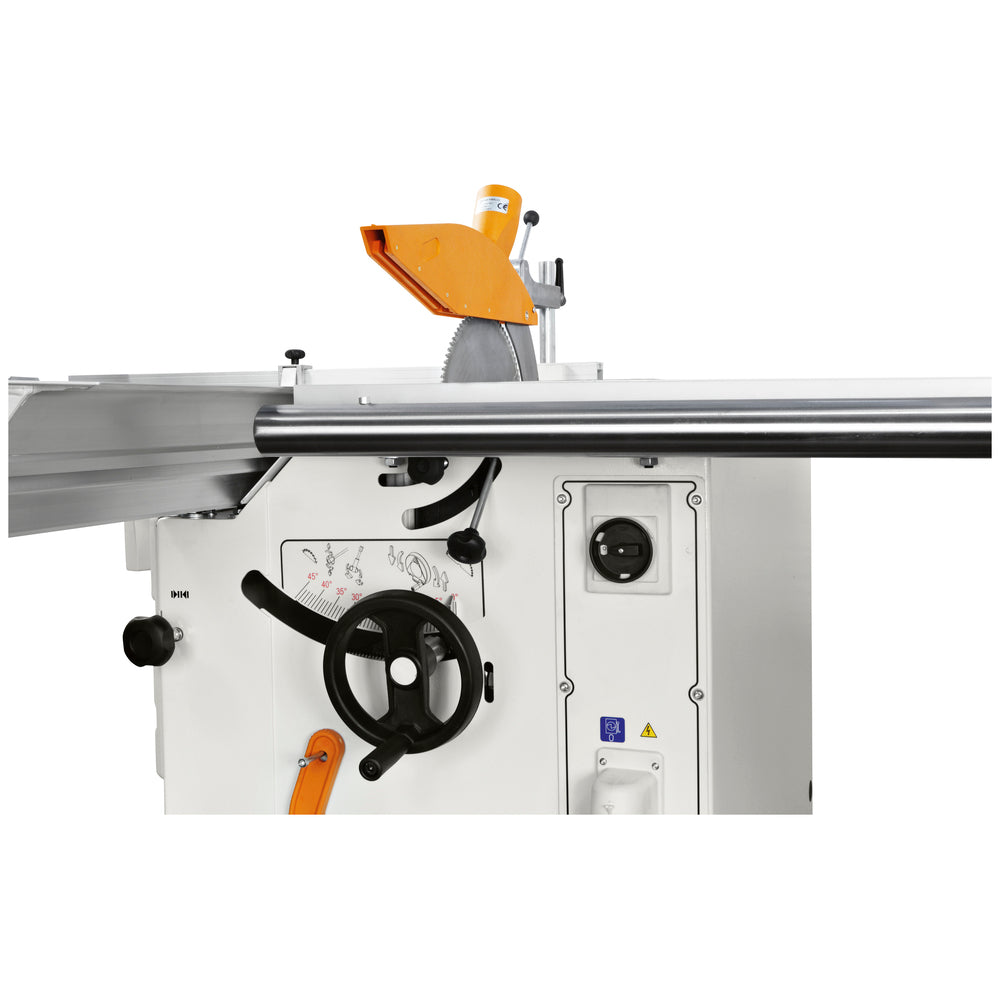

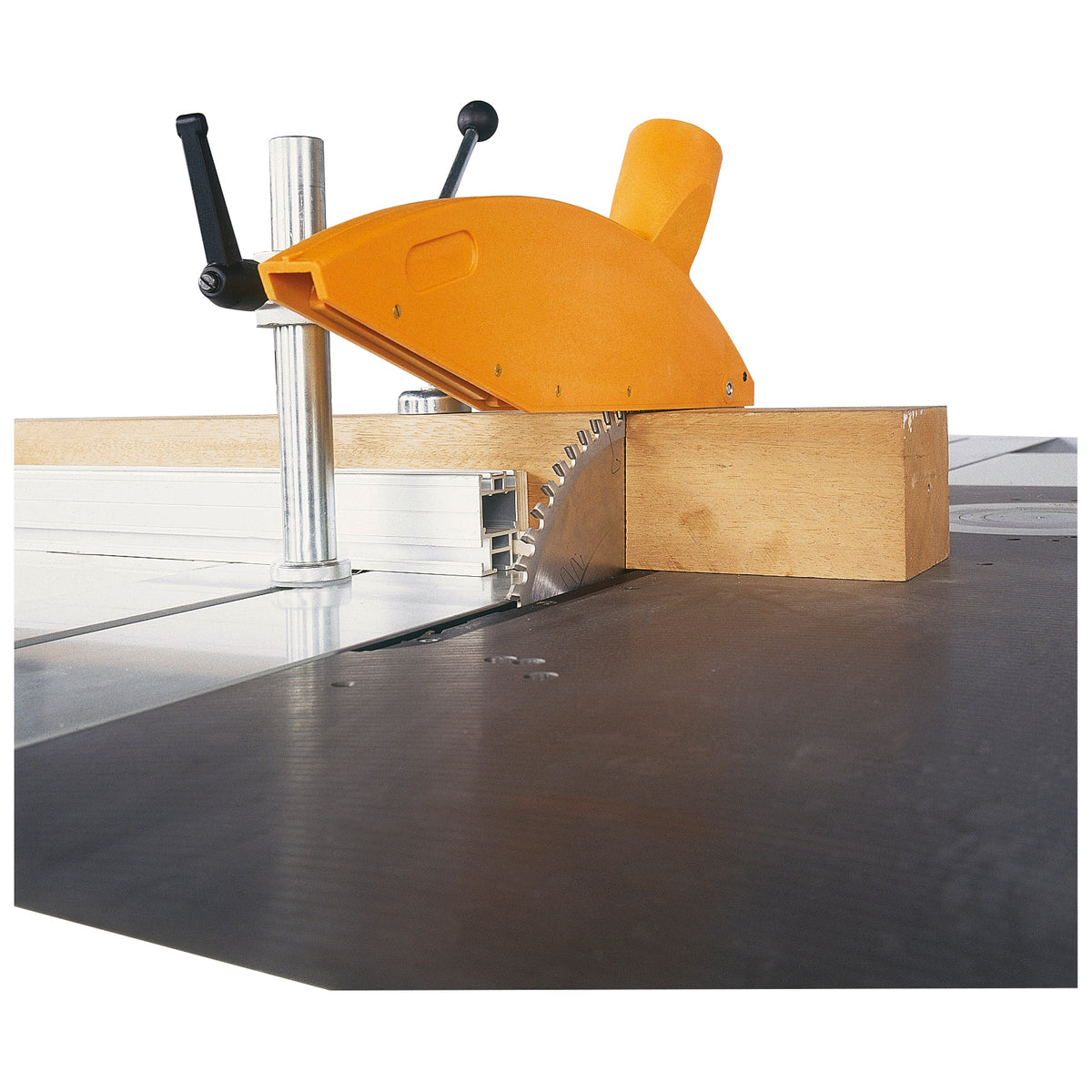

The saw unit accepts main blades up to 315 mm and provides a maximum cutting height of 100 mm at 90° or 78 mm at 45°. The included belt-driven scoring unit helps produce clean cuts in melamine, laminated and veneered panels.

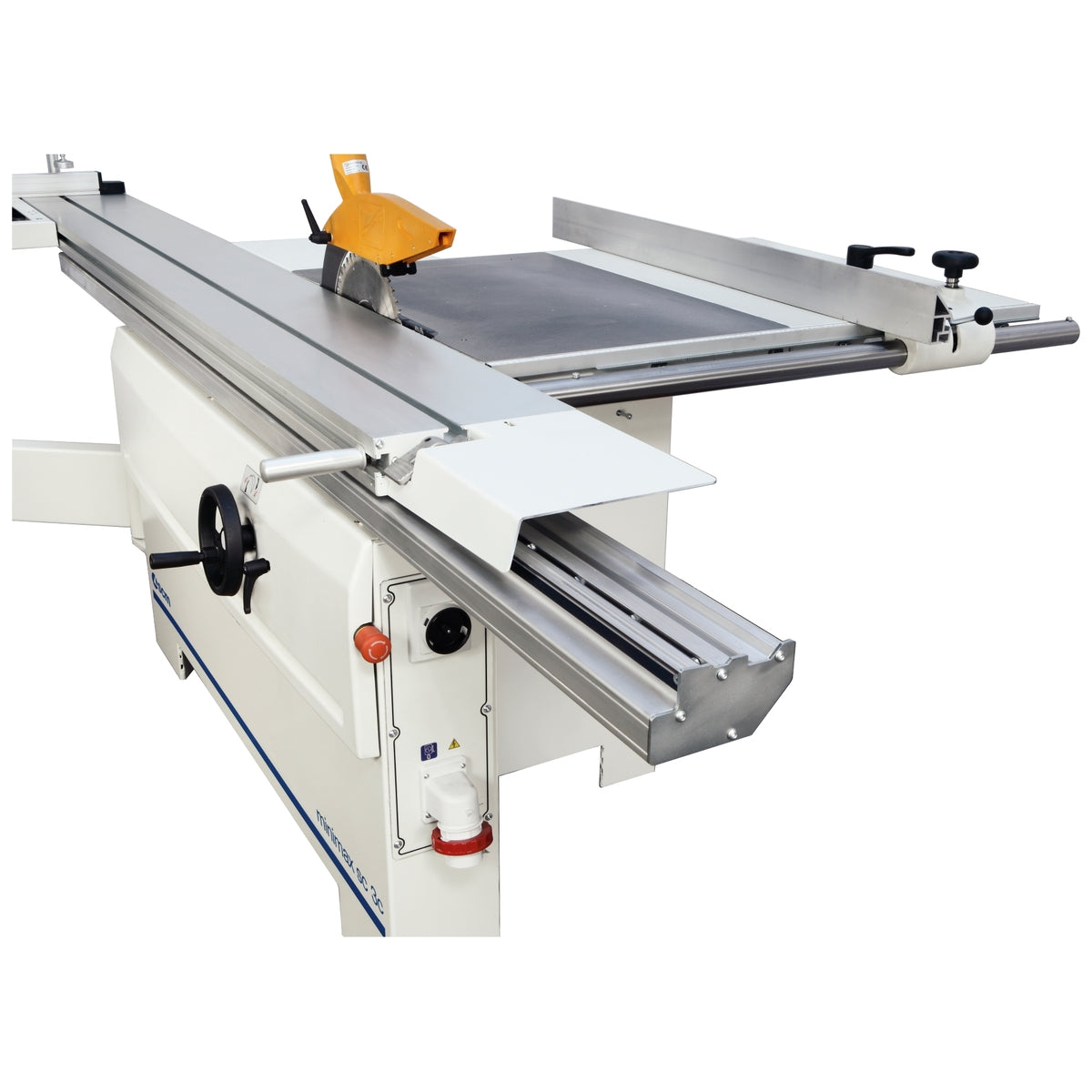

The extruded anodised aluminium sliding table has a closed honeycomb structure and runs on calibrated, hardened F550 SX steel guides for smooth movement and lasting accuracy. A telescopic squaring fence with two flip-over stops supports repeatable crosscutting, while the parallel fence provides rapid positioning and fine adjustment.

Key features and specifications

• 1660 mm maximum squaring stroke
• 900 mm rip capacity on the parallel fence
• 315 mm maximum main blade diameter
• 30 mm main blade arbor
• Maximum cutting height of 100 mm at 90°
• Maximum cutting height of 78 mm at 45°
• 2.2 kW (3 hp), 50 Hz single-phase motor
• Belt-driven scoring unit complete with scoring blade
• Tilting saw unit for angled cuts
• Extruded anodised aluminium sliding table with closed honeycomb structure
• Calibrated, hardened F550 SX steel guideways

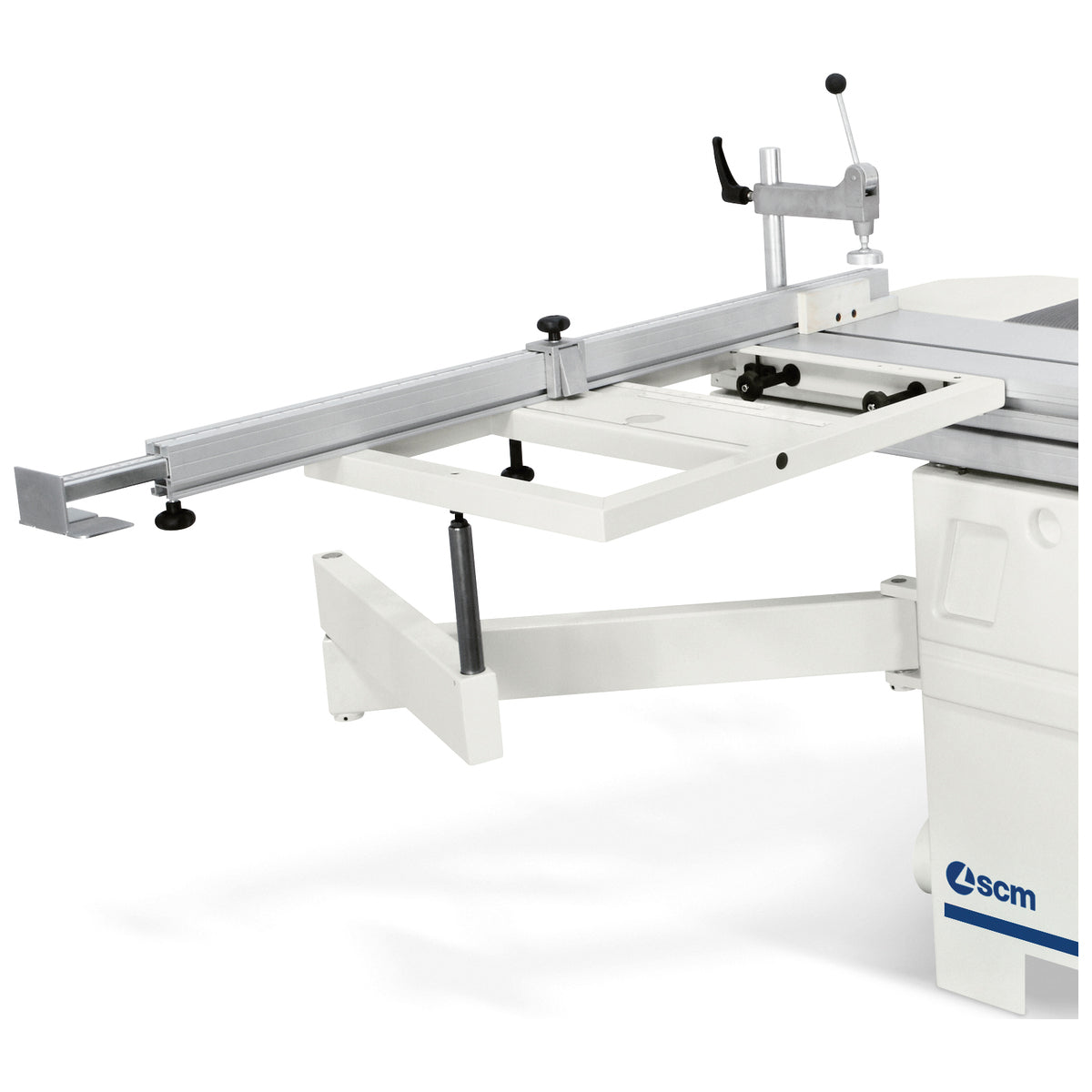

• Telescopic squaring fence with two flip-over stops

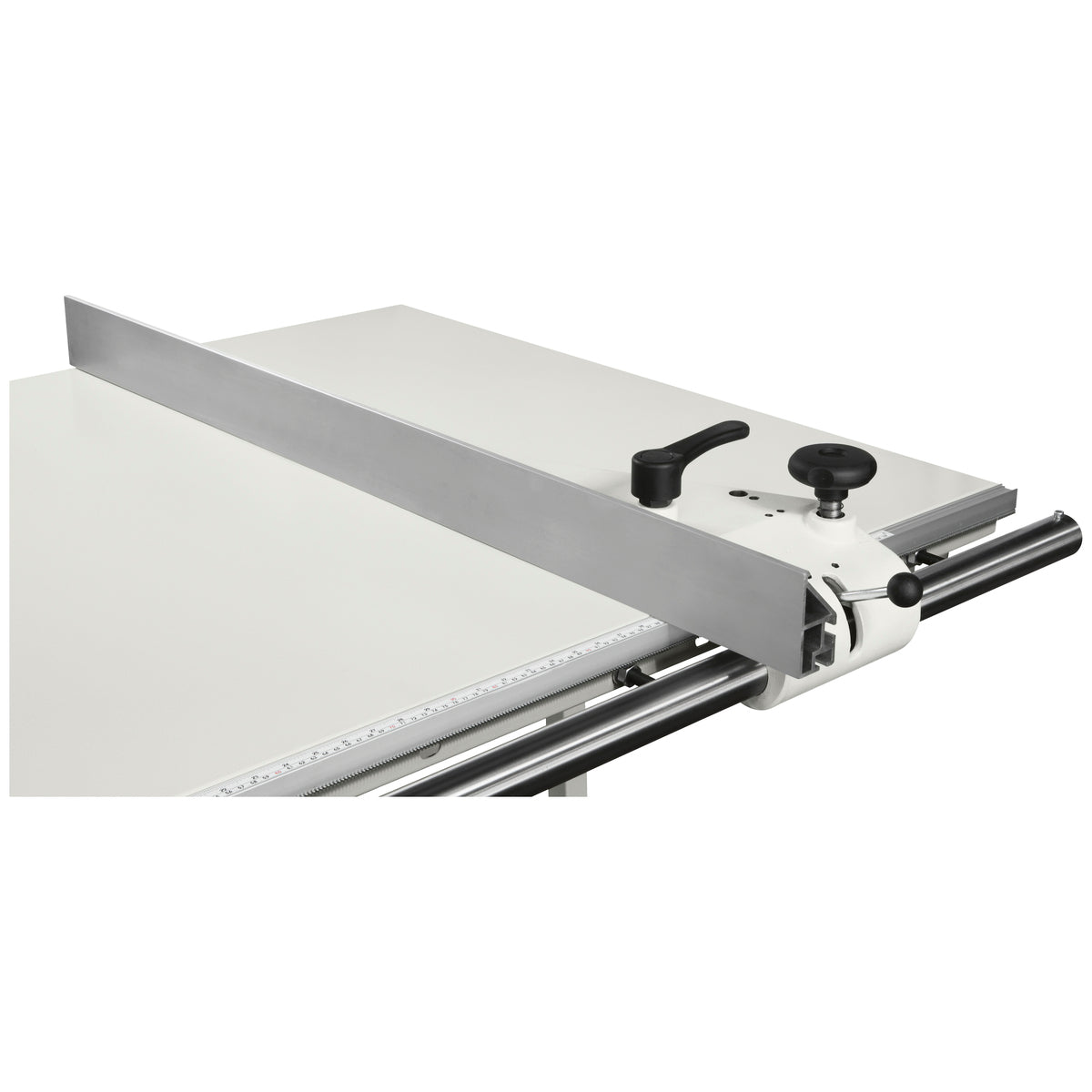

• Parallel fence with rapid positioning and fine adjustment

Suitable applications

• Cabinetmaking and furniture production
• Ripping and crosscutting solid timber
• Panel sizing and sheet processing
• Cutting plywood, MDF and melamine-faced boards
• Clean cutting of laminated and veneered panels
• Professional and serious home workshops where floor space is limited

Images may show optional equipment or accessories. Please confirm the supplied machine configuration before ordering.
