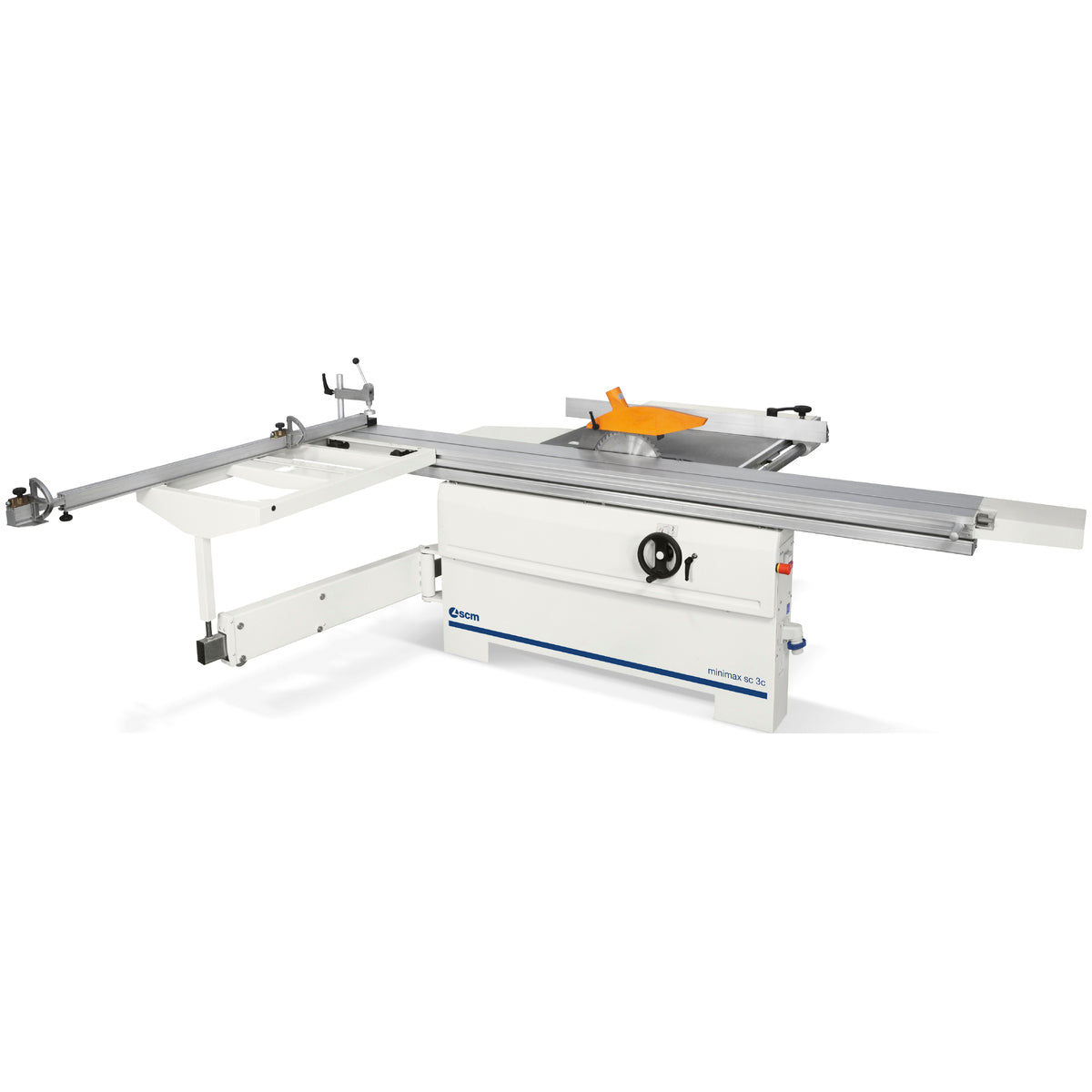

SCM Minimax SC 3C Sliding Table Saw — 2600 mm Stroke — Single Phase

The SCM Minimax SC 3C is a single-phase sliding table saw for cabinetmakers, joiners and woodworking workshops handling full-sized sheet materials and solid timber. The listed Australian configuration has a 2600 mm maximum squaring stroke and 900 mm rip capacity.

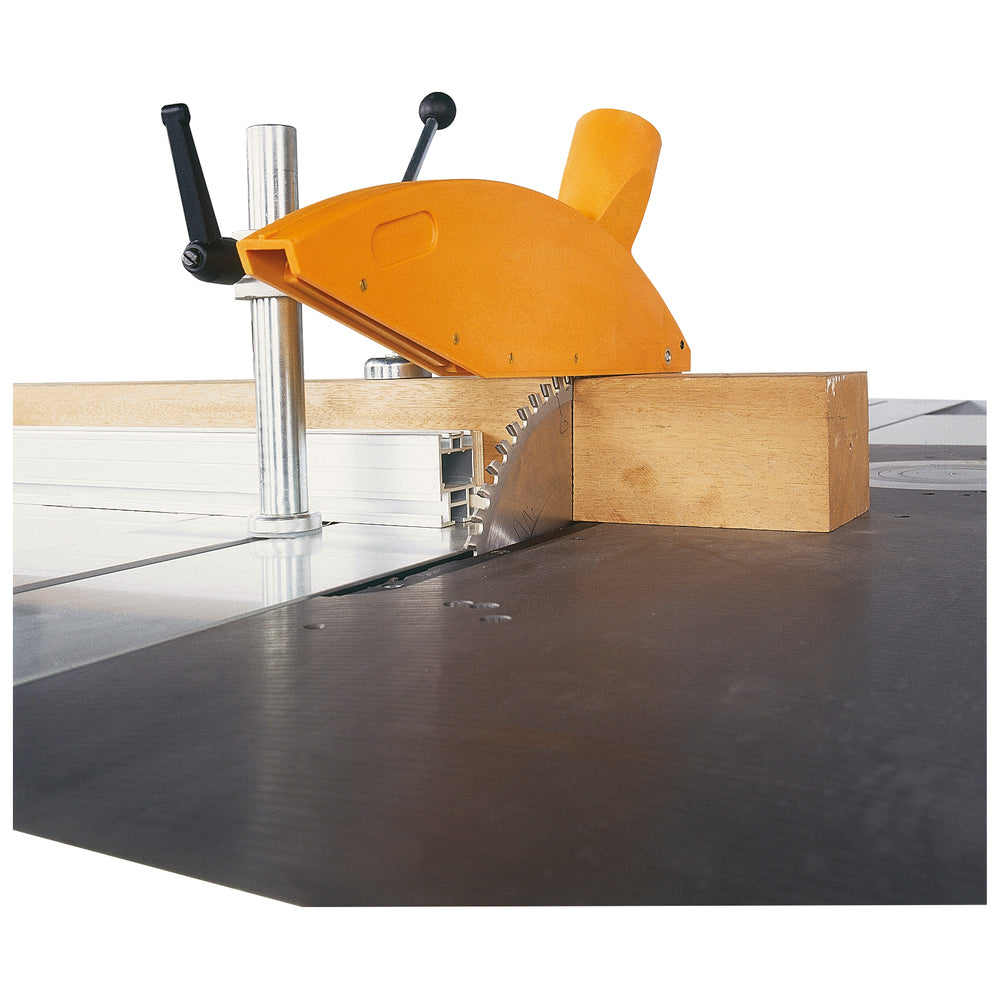

A 315 mm main blade provides up to 100 mm cutting height at 90° and 78 mm at 45°. The belt-driven scoring unit is supplied complete with blade for work on faced and veneered panels.

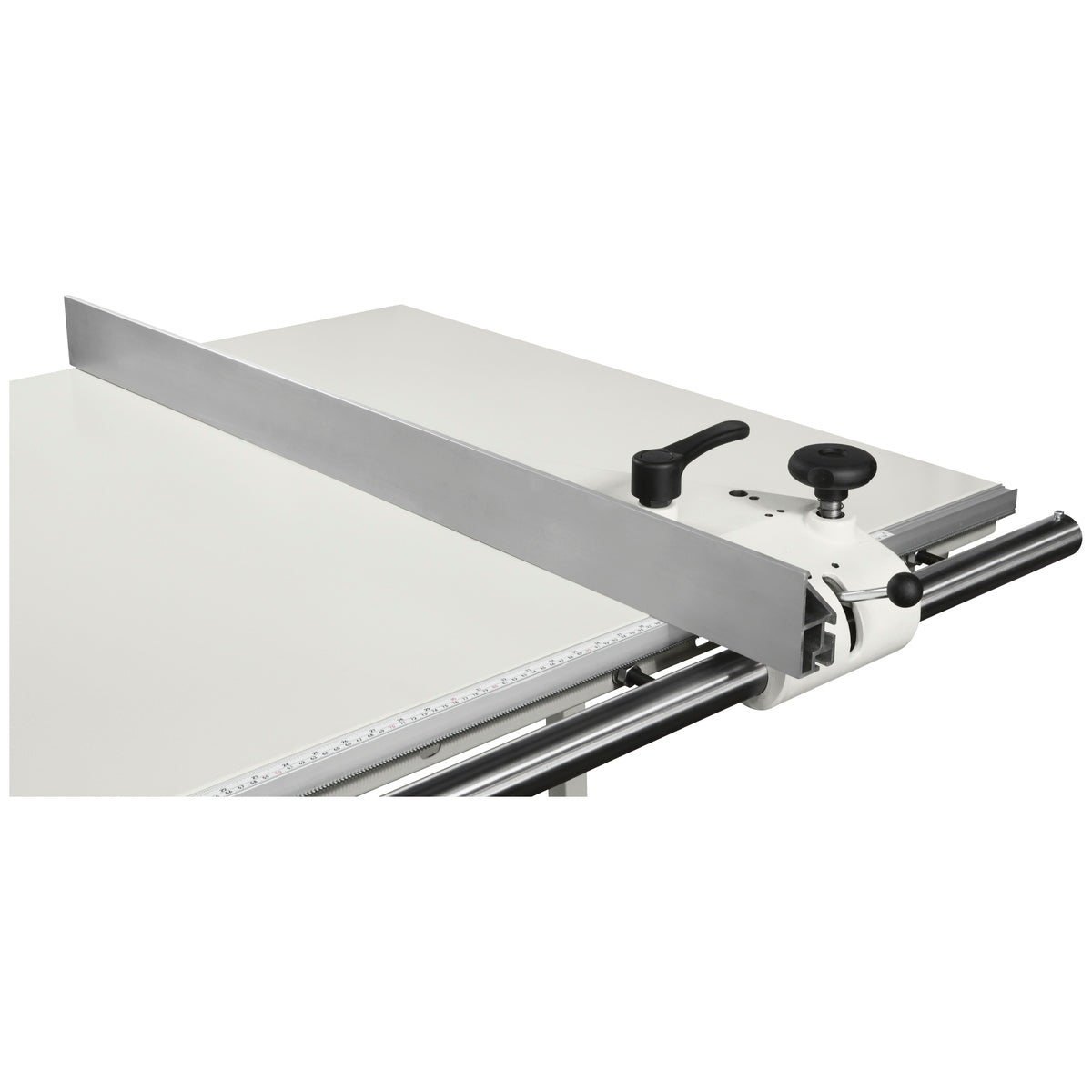

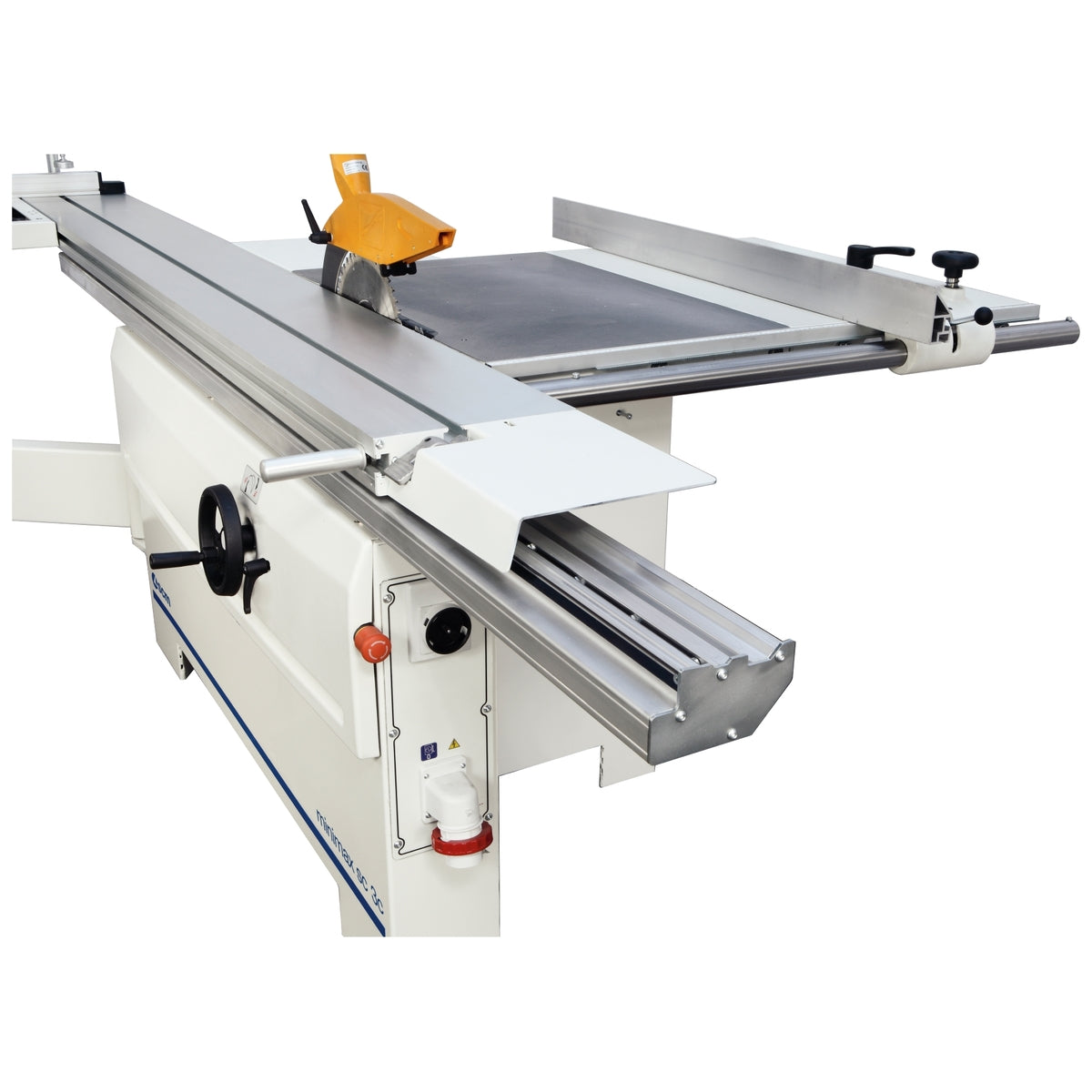

The machine uses an anodised aluminium sliding table on hardened F550 SX steel guides and a parallel fence with rapid locking. Power is supplied by a 2.2 kW (3 hp), 50 Hz single-phase motor. An additional table supports large panels, while the telescopic squaring rule has two flip-over stops and the angular cutting device supports mitre work.

Key features and specifications

• 2600 mm maximum squaring stroke in the listed configuration
• 900 mm cutting width on the parallel fence
• 315 mm maximum sawblade diameter
• 100 mm cutting height at 90°; 78 mm at 45°
• 2.2 kW (3 hp), 50 Hz single-phase motor
• Belt-driven scoring unit complete with blade
• Anodised aluminium sliding table on F550 SX steel guides
• Additional table for large panels; telescopic squaring rule with two flip-over stops

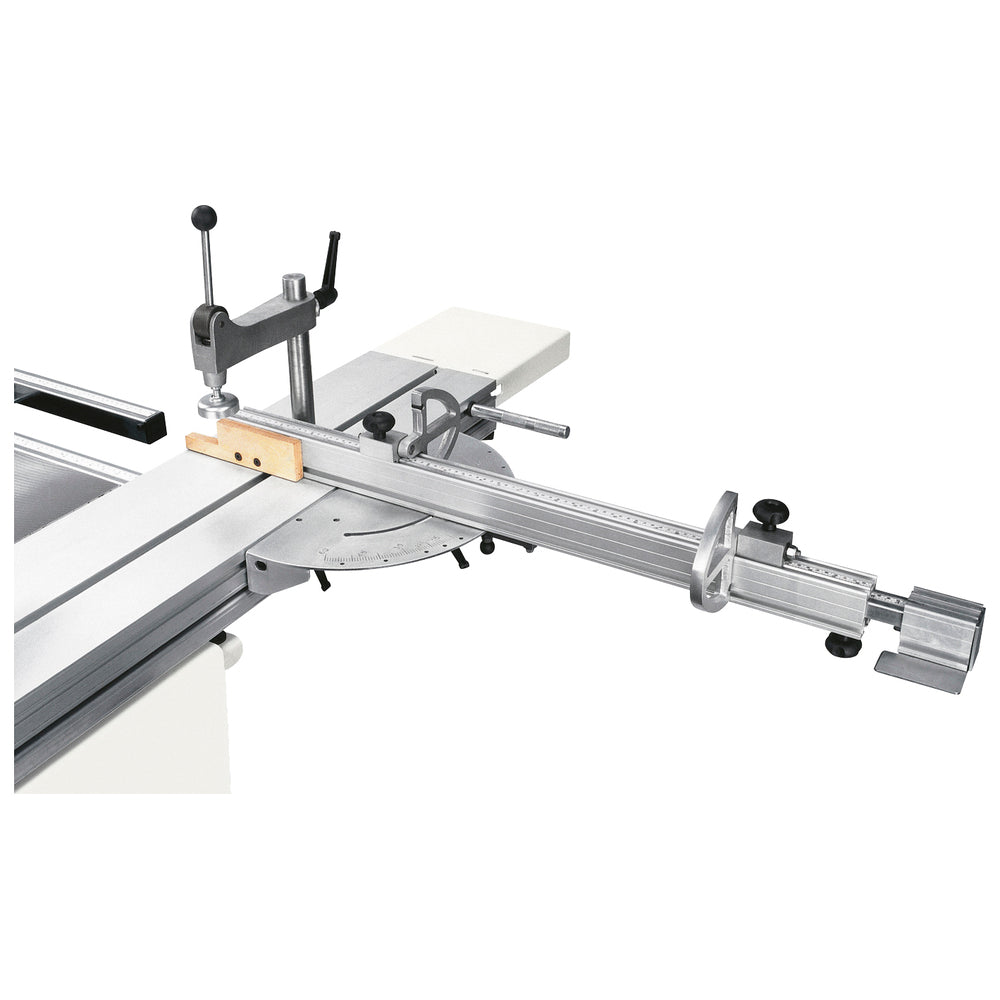

• Angular cutting device and rapid-locking parallel fence

Suitable applications

• Sizing and ripping full-sized panels for cabinetry and furniture
• Crosscutting solid timber and sheet materials
• Mitre cutting smaller workpieces

Images may show optional equipment or accessories. Please confirm the exact supplied machine configuration and electrical requirements before ordering.
