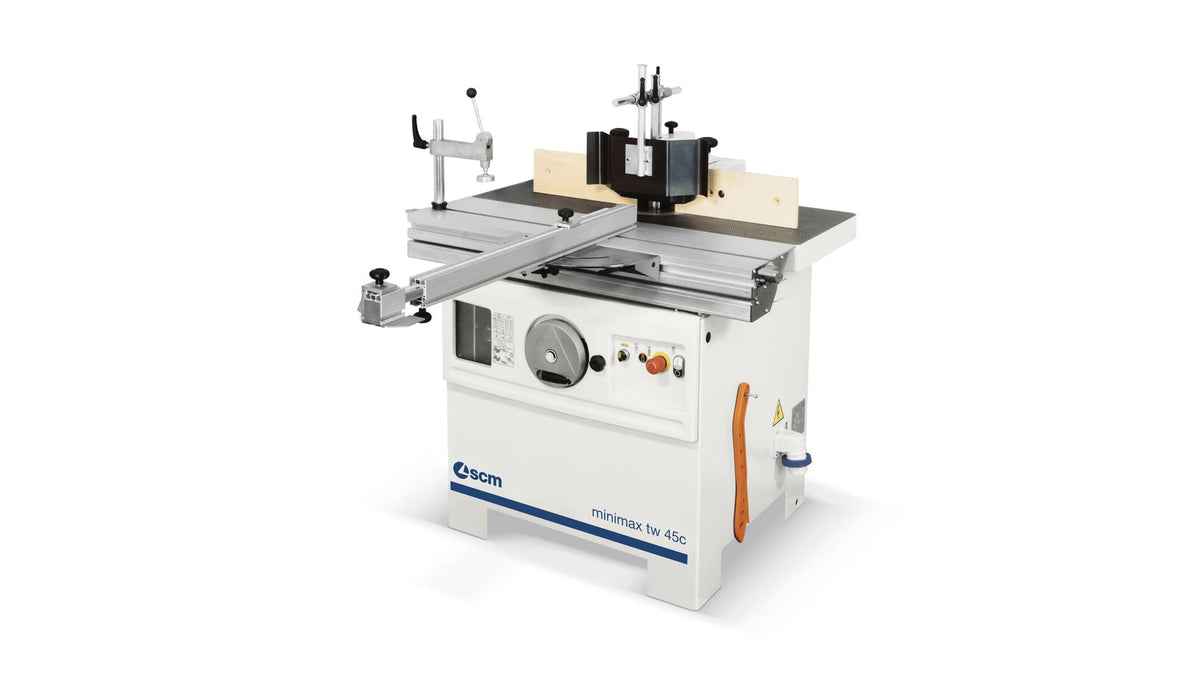

SCM Minimax TW 45C Sliding-Table Spindle Moulder

The SCM Minimax TW 45C is a sliding-table spindle moulder for cabinetmakers, joiners and woodworking workshops carrying out profiling and tenoning work.

It has a cast-iron structure and a 270 mm sliding table that provides additional support for tenoning. The spindle-moulder fence has micrometric adjustment with vertical and horizontal pressers.

At 50 Hz, the listed spindle speeds are 3,500, 7,000 and 10,000 rpm. The machine has a 100 mm maximum useful spindle length and supports tooling diameters up to 210 mm for profiling, 180 mm lowered under the table at 90°, and 275 mm for tenoning. SCM lists three-phase motors from 5 kW at 50 Hz. Tilting-spindle and spindle-moulder hood configurations are optional or configuration-dependent; confirm the exact supplied setup before ordering.

Key features and specifications

• 270 mm sliding table

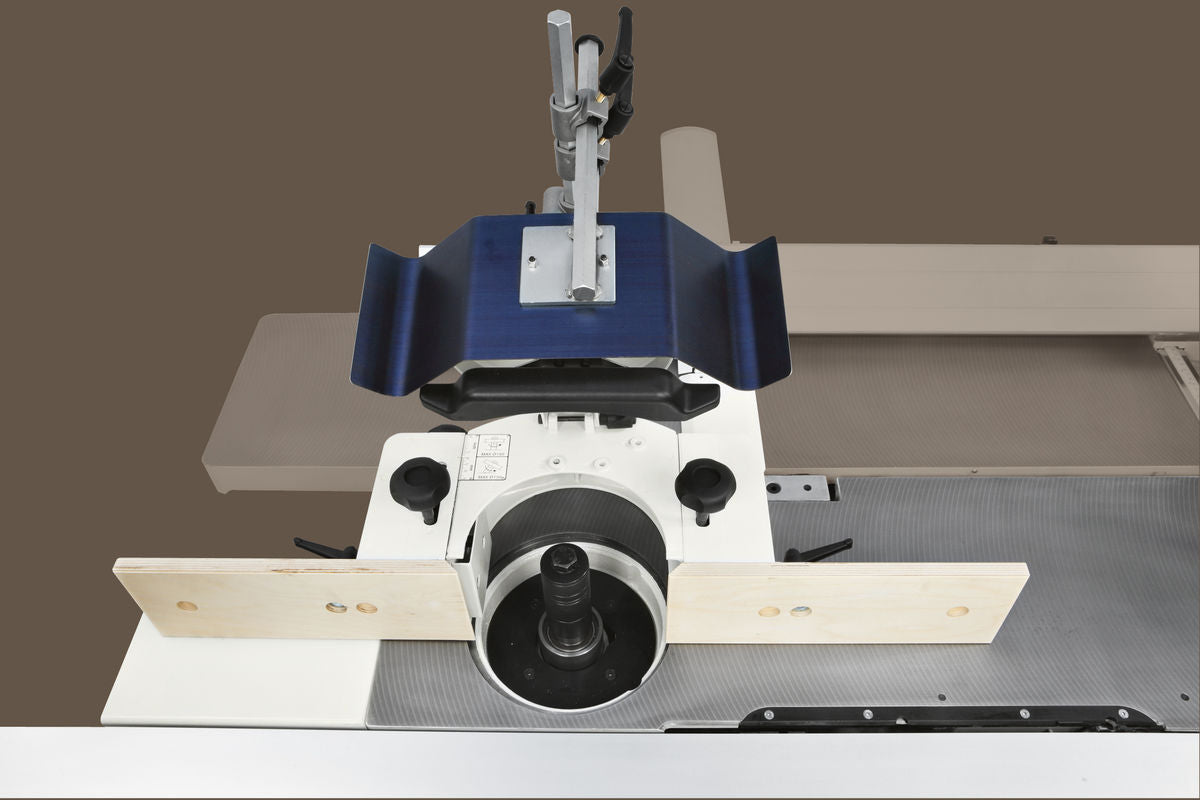

• Cast-iron structure and protective cast-iron cup
• Spindle-moulder fence with micrometric adjustment and vertical and horizontal pressers
• Maximum useful spindle length: 100 mm
• Spindle speeds at 50 Hz: 3,500 / 7,000 / 10,000 rpm
• Maximum tool diameter for profiling: 210 mm
• Maximum tool diameter lowered under the table at 90°: 180 mm
• Maximum tool diameter for tenoning: 275 mm
• Three-phase motors from 5 kW at 50 Hz

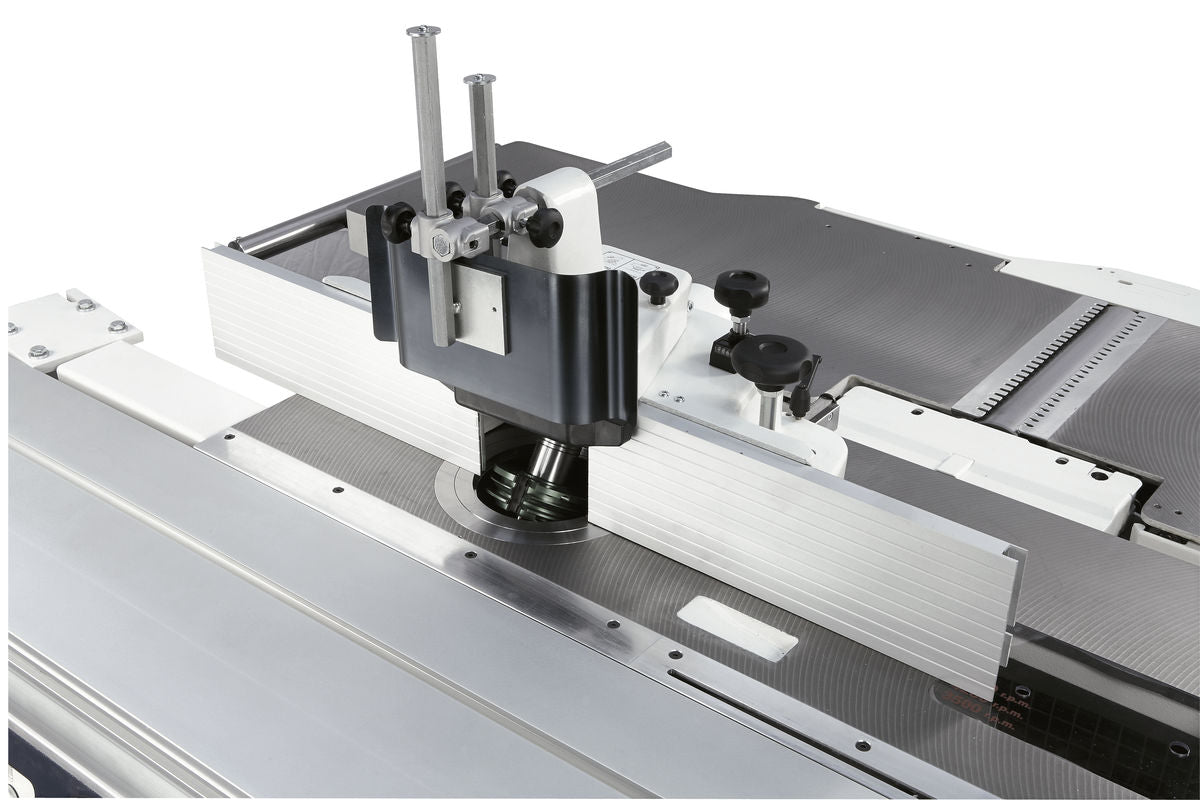

• 45° inward-tilting spindle and specialised spindle-moulder hood are configuration-dependent options; confirm before ordering

Suitable applications

• Profiling and moulding timber components
• Tenoning work using the sliding table and suitable tooling

Images may show optional equipment or accessories. Please confirm the exact supplied machine configuration and electrical requirements before ordering.
