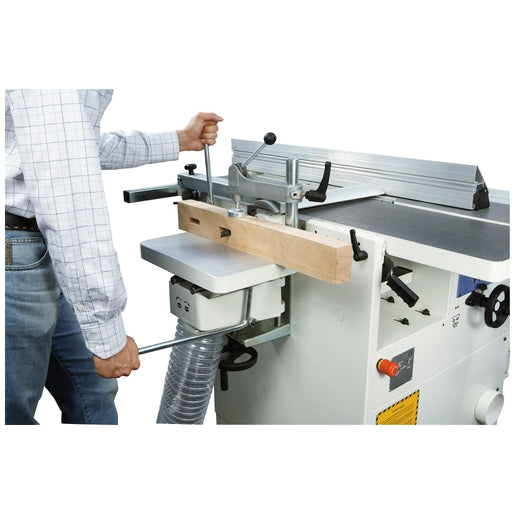

SCM 777326 horizontal mortiser in use on a Minimax combination machine, machining a timber workpiece

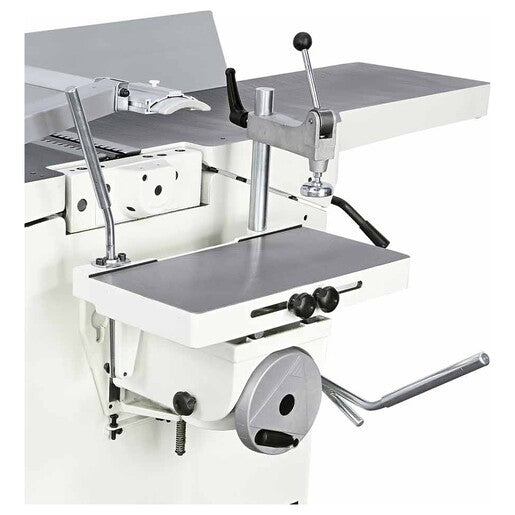

SCM 777326 horizontal mortiser fitted to a Minimax combination machine, showing table and adjustment handles

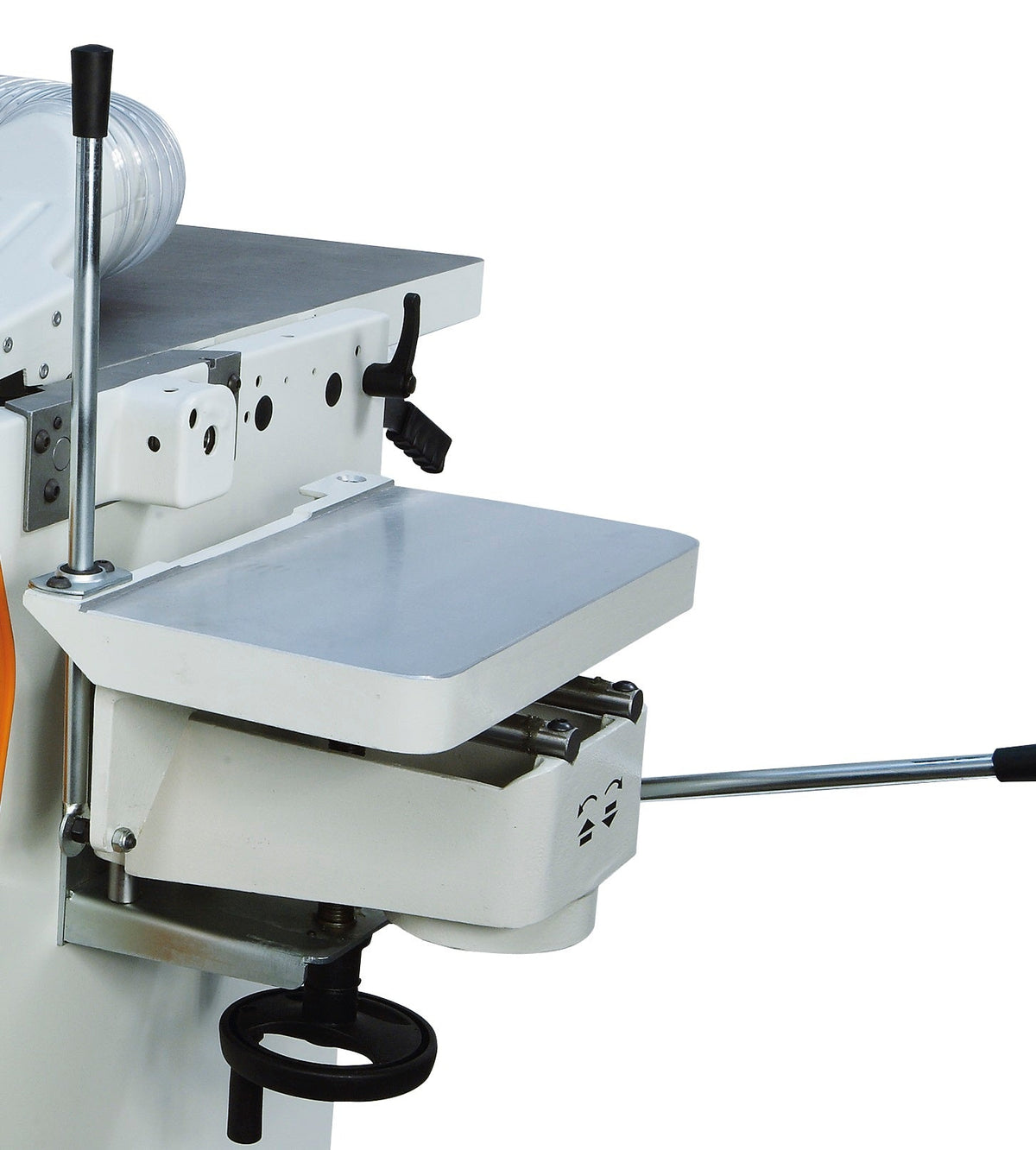

SCM 777326 mortising attachment fitted to a Minimax machine, with its table, adjustment handles and handwheel
SCM 777326 horizontal mortiser in use on a Minimax combination machine, machining a timber workpiece
SCM 777326 horizontal mortiser fitted to a Minimax combination machine, showing table and adjustment handles
SCM 777326 mortising attachment fitted to a Minimax machine, with its table, adjustment handles and handwheel
SCM Group

SCM Minimax 777326 Horizontal Mortiser for Genius & LAB 300P

SKU: 777326
$1,026.00 inc GST
Description

The SCM Minimax 777326 Horizontal Mortiser is an accessory for selected Minimax combination machines. It includes a 16 mm chuck and a 120 mm diameter dust-extraction hood.

SCM lists the mortiser for the Minimax C 26G, C 30G, FS 30G and LAB 300P. Check your machine's exact model before ordering to confirm compatibility.

The 380 × 207 mm worktable has 75 mm vertical, 120 mm transverse and 85 mm longitudinal travel. This listing is for the mortiser attachment only; the compatible machine shown in some images is not included.

Key features and specifications

  • SCM part number 777326
  • 380 × 207 mm worktable
  • 75 mm vertical stroke
  • 120 mm transverse stroke
  • 85 mm longitudinal stroke
  • 16 mm chuck
  • 120 mm diameter dust-extraction hood
  • Compatible with Minimax C 26G, C 30G, FS 30G and LAB 300P

Suitable applications

  • Drilling holes and mortises in timber workpieces on a compatible Minimax combination machine

Images show the mortiser fitted to compatible Minimax machines for illustration. This listing is for the mortiser attachment only; the machine is not included. Confirm fitment with your exact model before ordering.
