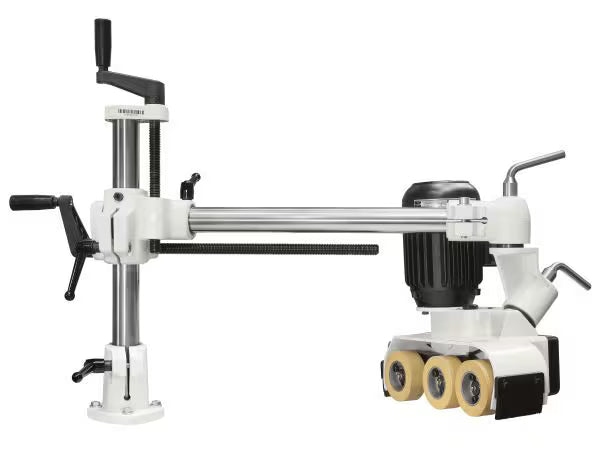

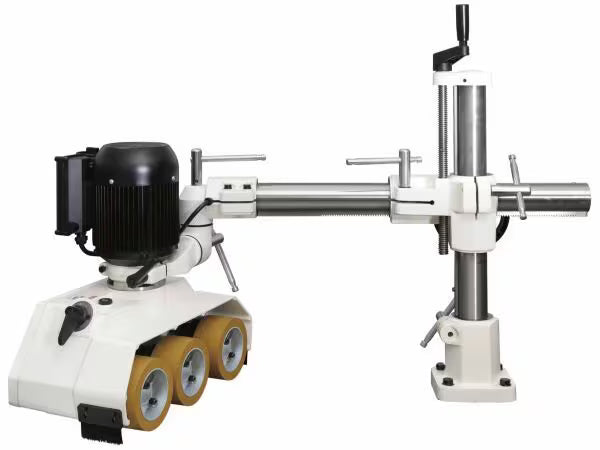

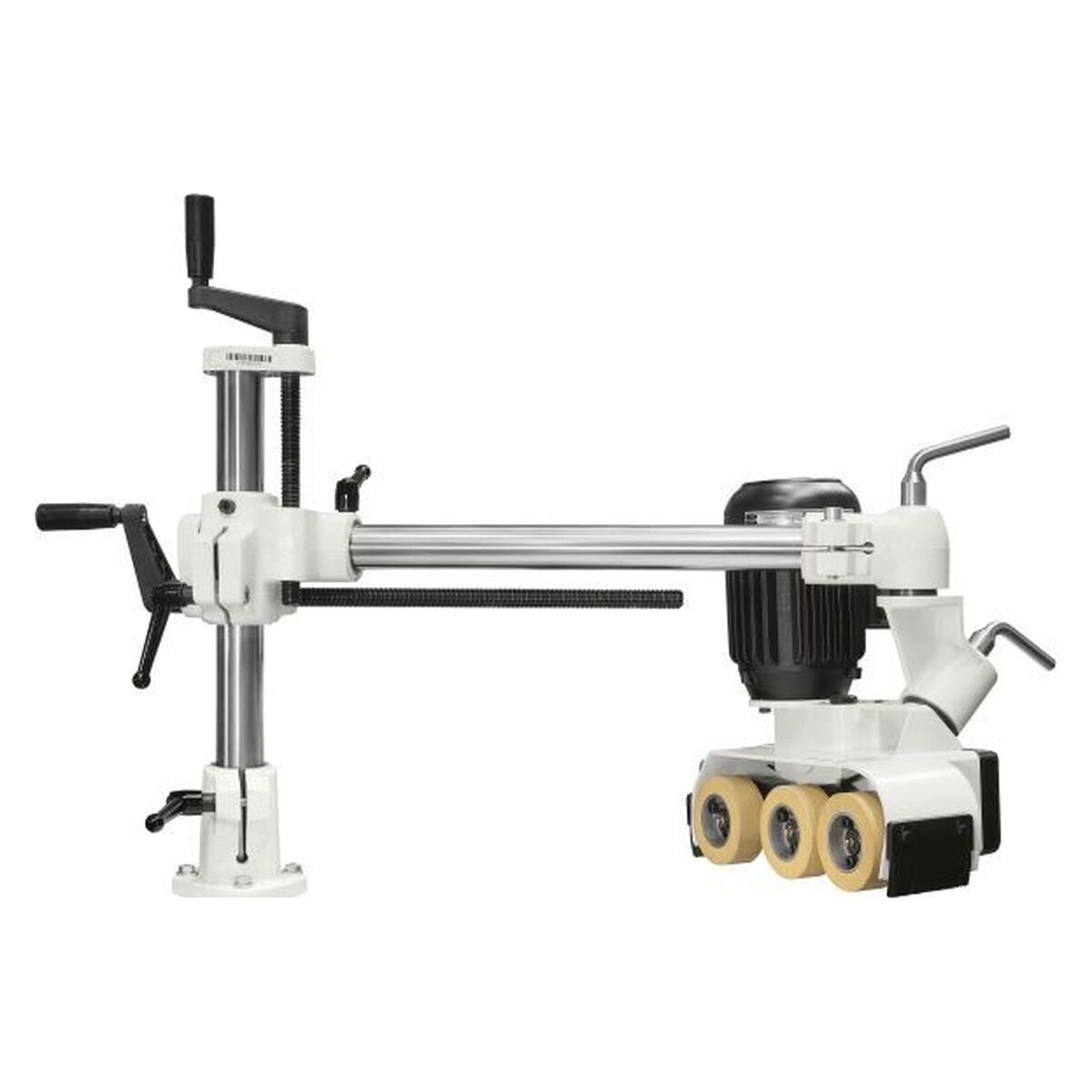

The formula feed feeders with 3 and 4 rollers are a necessary device for all modern woodworking workshops.
Thanks to the variable feed speeds and the strong structure, they guarantee accuracy and safety at the highest levels.
Technical data
| formula |
|
feed 32 |
feed 38 |
feed 48 |
| Number of rollers |
|
3 |
3 |
4 |
| Feed speed |
m/min |
5/6,5/8/11 |
2/4/5,5/7/11/13/16,5/33 |
2/4/5,5/7/11/13/16,5/33 |
| Rollers diameter |
mm |
80 |
120 |
120 |
| Rollers width |
mm |
30 |
60 |
60 |
| Rollers excursion |
mm |
18 |
18 |
18 |
| Three-phase motor power |
kW (Hz) |
0,18 (50) |
0,75 (50) |
0,75 (50) |
|
