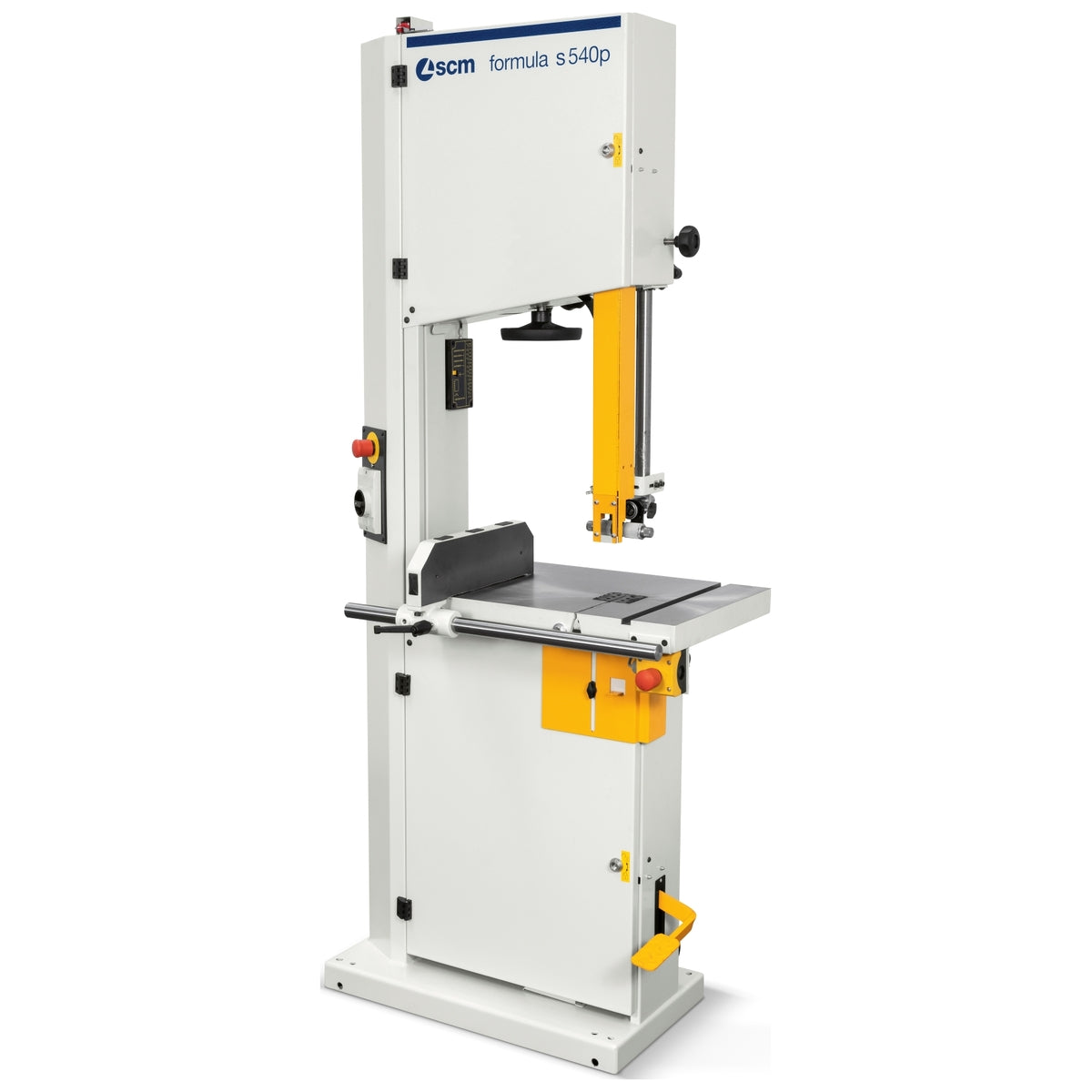

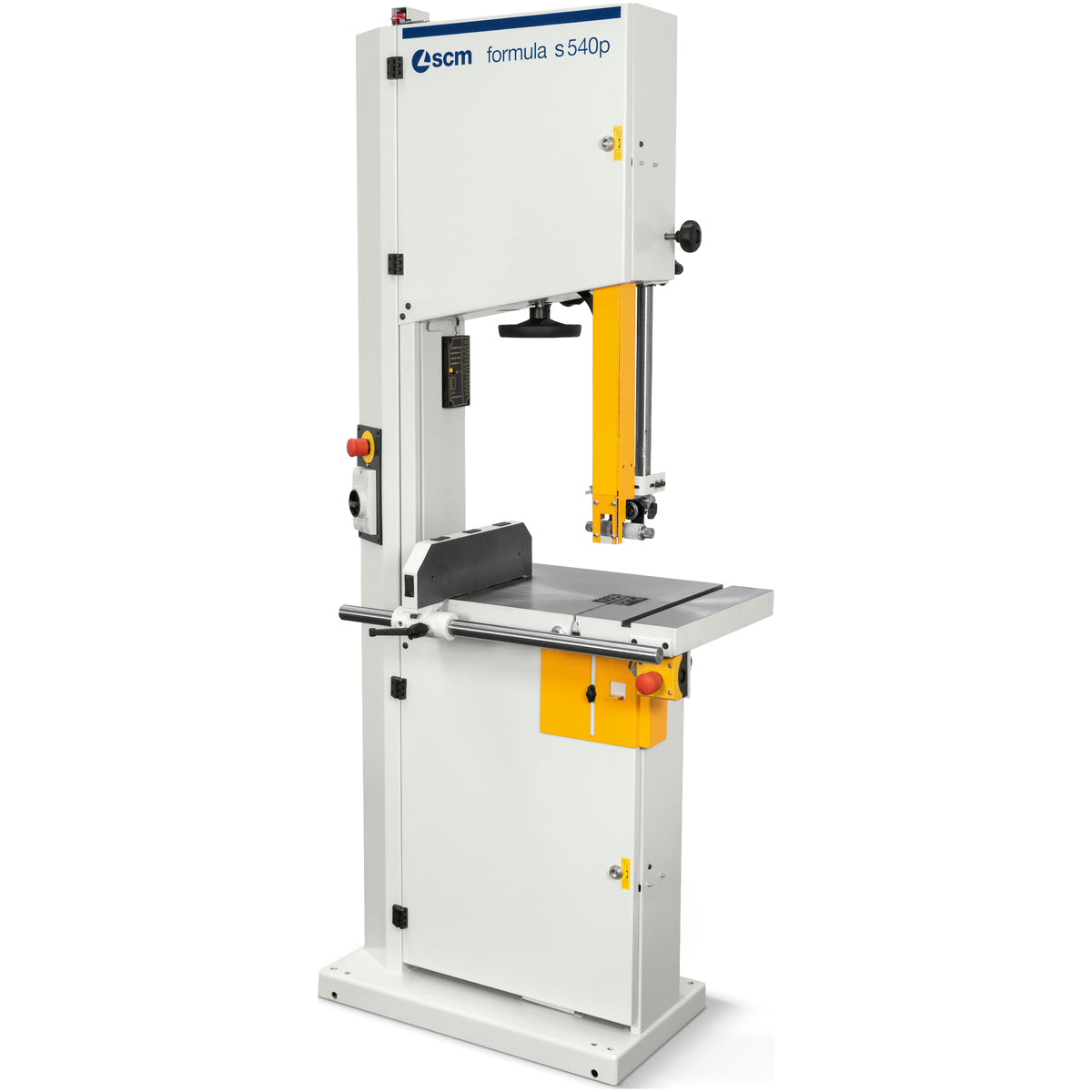

SCM Formula S 540P Bandsaw – 540 mm – 4 HP, 400 V

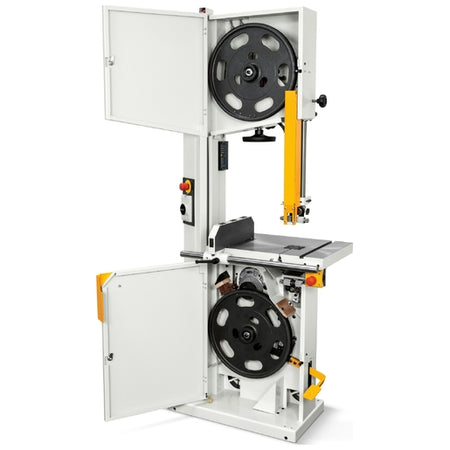

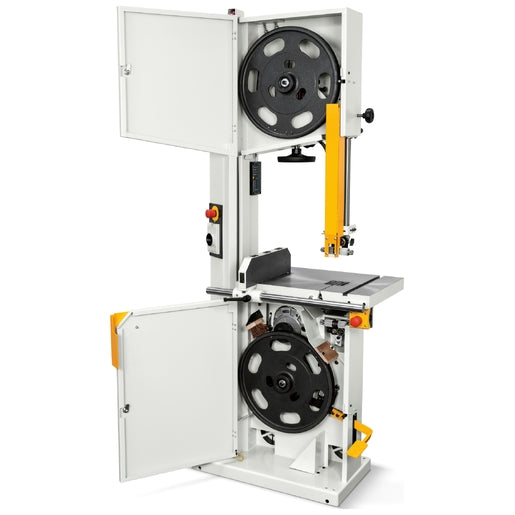

The SCM Formula S 540P is a professional bandsaw for cabinetmakers, joiners and woodworking workshops requiring increased capacity for accurate straight, angled and resaw cuts in solid timber. This three-phase CE version combines 540 mm cast-iron wheels with a 500 mm maximum cutting height and 520 mm maximum cutting width.

Thick cast-iron wheels and the lapped cast-iron worktable run on sealed-for-life ball bearings for smooth, reliable operation. Top and bottom ball-bearing blade guides help minimise lateral blade movement, while the cast-iron squaring fence and telescopic blade protection support controlled setup and repeatable cuts.

The Australian configuration includes a steel blade and a three-phase motor. Its larger 520 x 720 mm worktable provides room for substantial workpieces, with a CE tilt range and twin 120 mm extraction outlets for workshop dust collection. Confirm the final motor rating and electrical supply against the quotation before publication.

Key features and specifications

• 500 mm maximum cutting height
• 520 mm maximum cutting width
• 540 mm cast-iron saw wheels

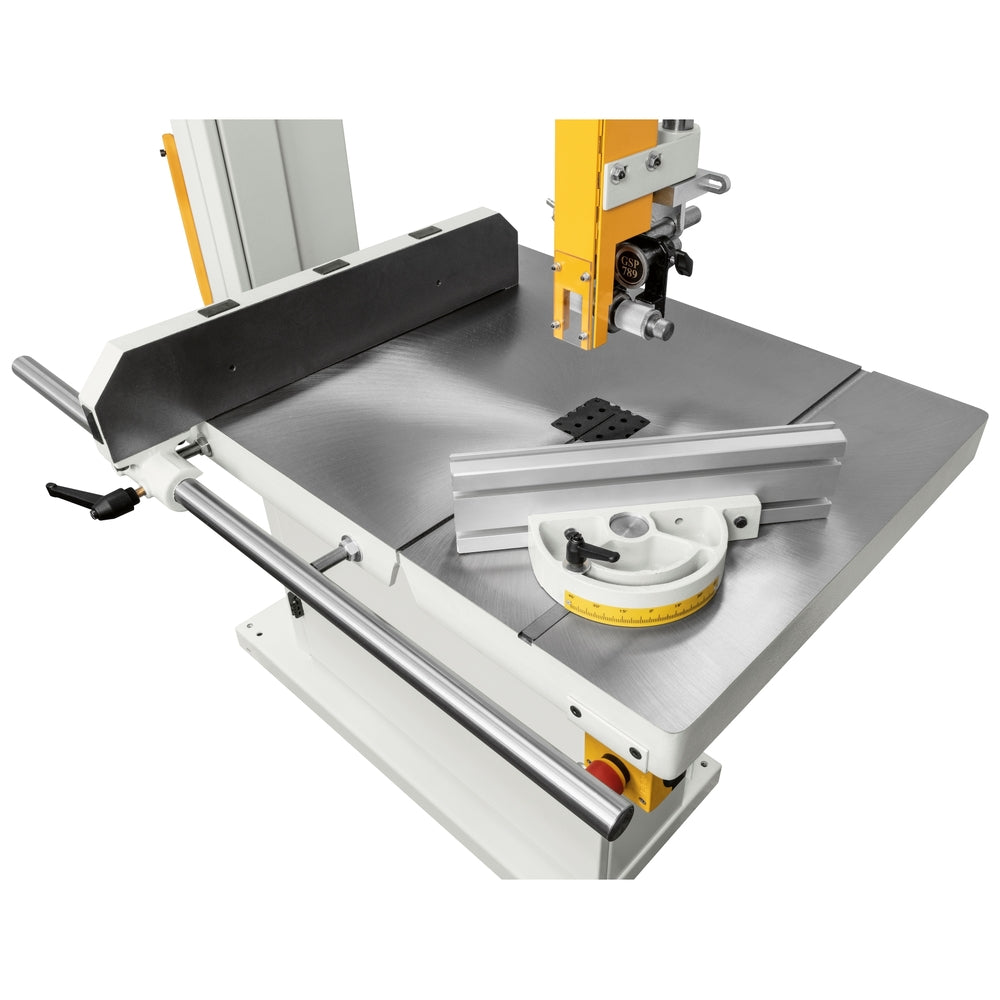

• 520 x 720 mm cast-iron worktable
• 38 mm saw-wheel width
• Worktable tilting from 0° to 45° (20° on the CE version)
• Three-phase motor, 50 Hz; confirm supplied voltage and power before ordering
• 4560 mm maximum blade length

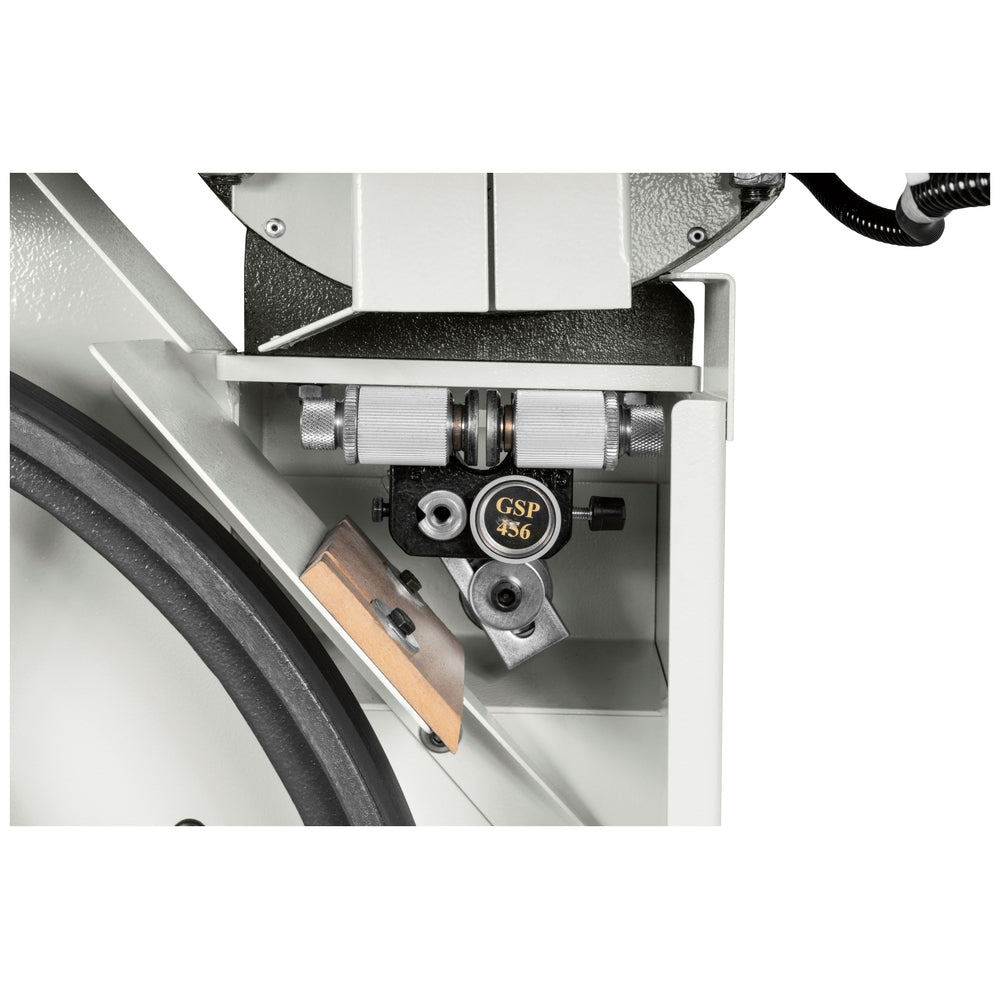

• Top and bottom ball-bearing blade guides
• Cast-iron squaring fence and telescopic blade protection
• Steel blade included in the listed configuration
• 2 x 120 mm dust-extraction outlets

Suitable applications

• Resawing and sizing large solid-timber sections
• Custom furniture and cabinetmaking
• Straight and angled cuts in wood
• Cutting plastic and aluminium with the appropriate blade
• Professional workshops requiring increased bandsaw capacity

Images may show optional equipment or accessories. Please confirm the exact supplied machine configuration and electrical requirements before ordering.
