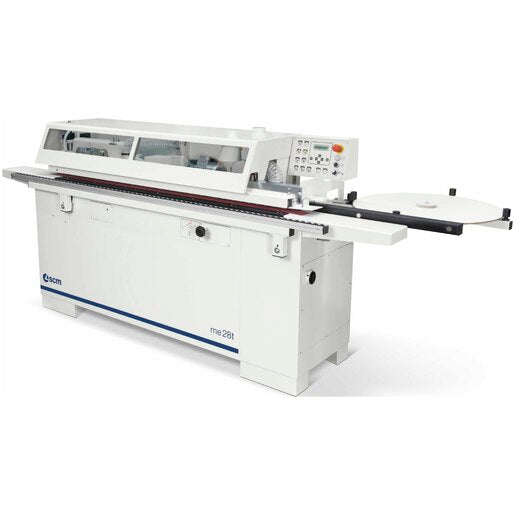

SCM ME 28T Automatic Edgebander with Pre-Milling

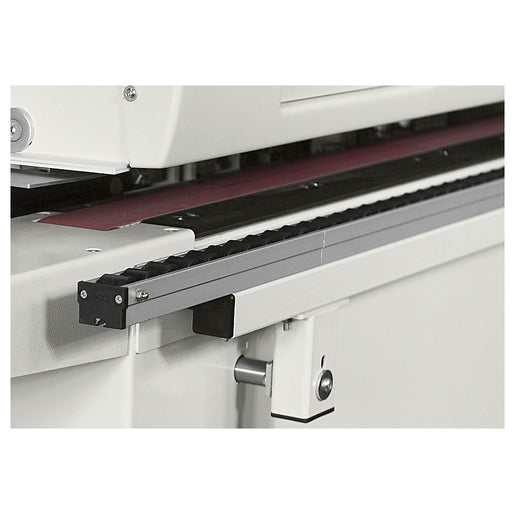

The SCM ME 28T is an automatic edgebander for woodworking shops, combining a glue pot, pre-milling unit and a panel conveying track designed to move panels smoothly through the machine.

It processes rolled edges from 0.4 to 3 mm and wooden strips up to 5 mm, with a feed speed of 7 m/min. The pre-milling unit corrects panel-edge imperfections before glue application.

The machine accepts panel heights from 12 to 50 mm, or 16 to 50 mm when using the edge-scraping unit. The listed electrical supply is 400 V, 50 Hz, three phase.

Key features and specifications

• Automatic edgebander with glue pot and pre-milling unit
• Rolled edges: 0.4–3 mm; wooden strips: up to 5 mm
• Panel height: 12–50 mm; 16–50 mm when using edge scraping
• Feed speed: 7 m/min
• Worktable: 2800 × 570 mm; height: 904 mm
• Pre-milling motor: 3 kW
• Electrical supply: 400 V, 50 Hz, three phase; nominal current: 19 A

Suitable applications

• Applying PVC, ABS, melamine and wood-strip edging to panel products
• Preparing panel edges with pre-milling before glue application
• Workshop panel edging production

Images may show optional equipment or accessories. Please confirm the exact supplied machine configuration and electrical requirements before ordering.
