SCM Minimax CU 300C Combination Machine – 300 mm, 2600 mm Table – 240 V

SKU: CU 300C
$24,275.00 inc GST

Need delivery pricing or want to discuss this machine? Send us your details and delivery postcode. We’ll confirm current availability, lead time and freight pricing.

Description

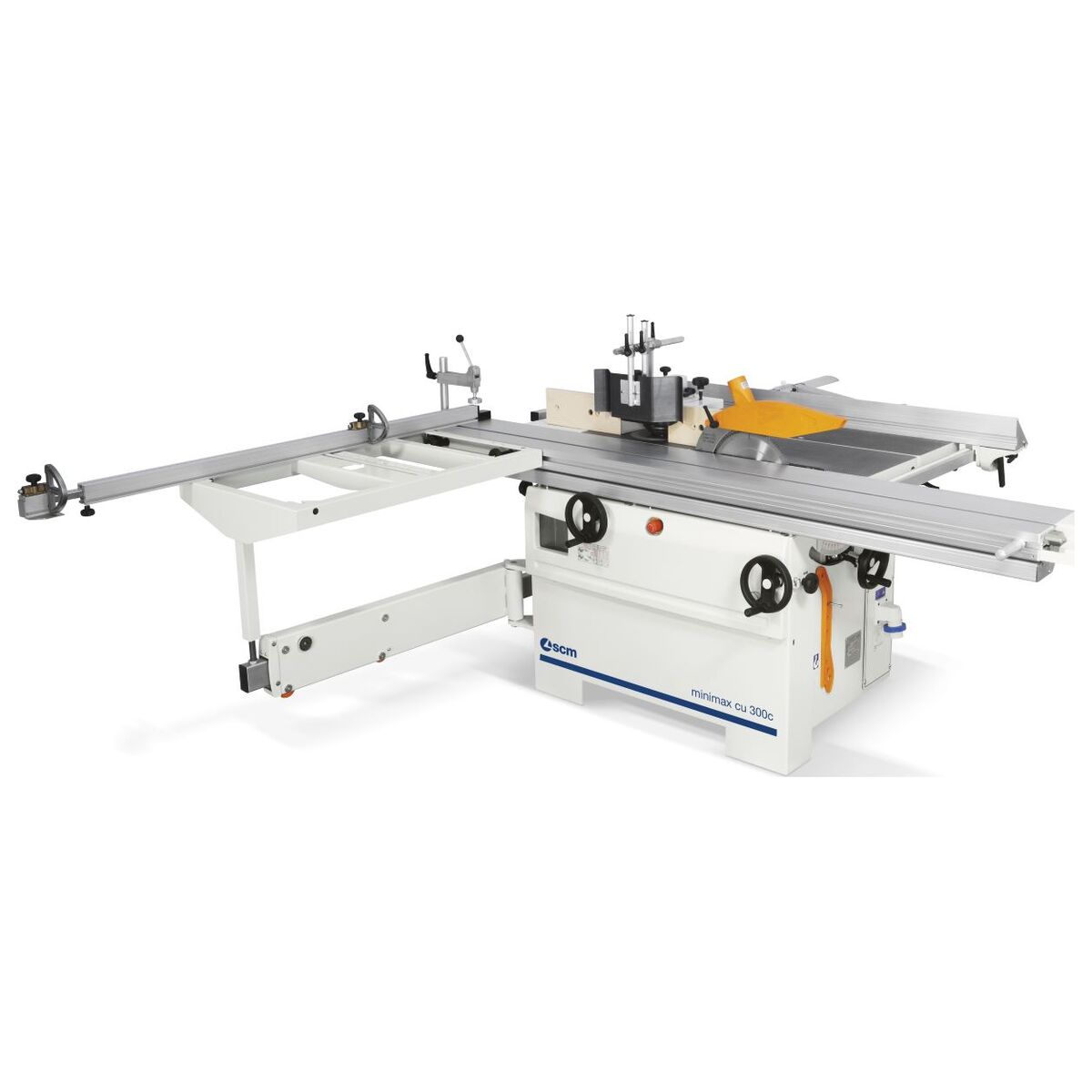

The SCM Minimax CU 300C 26X1 is a single-phase universal combination machine for cabinetmakers, joiners and woodworking workshops requiring surface planing, thicknessing, sliding-table sawing and spindle moulding in one footprint. The 26X1 configuration combines a 300 mm planer with a 2600 mm sliding-table stroke for solid-timber and panel work.

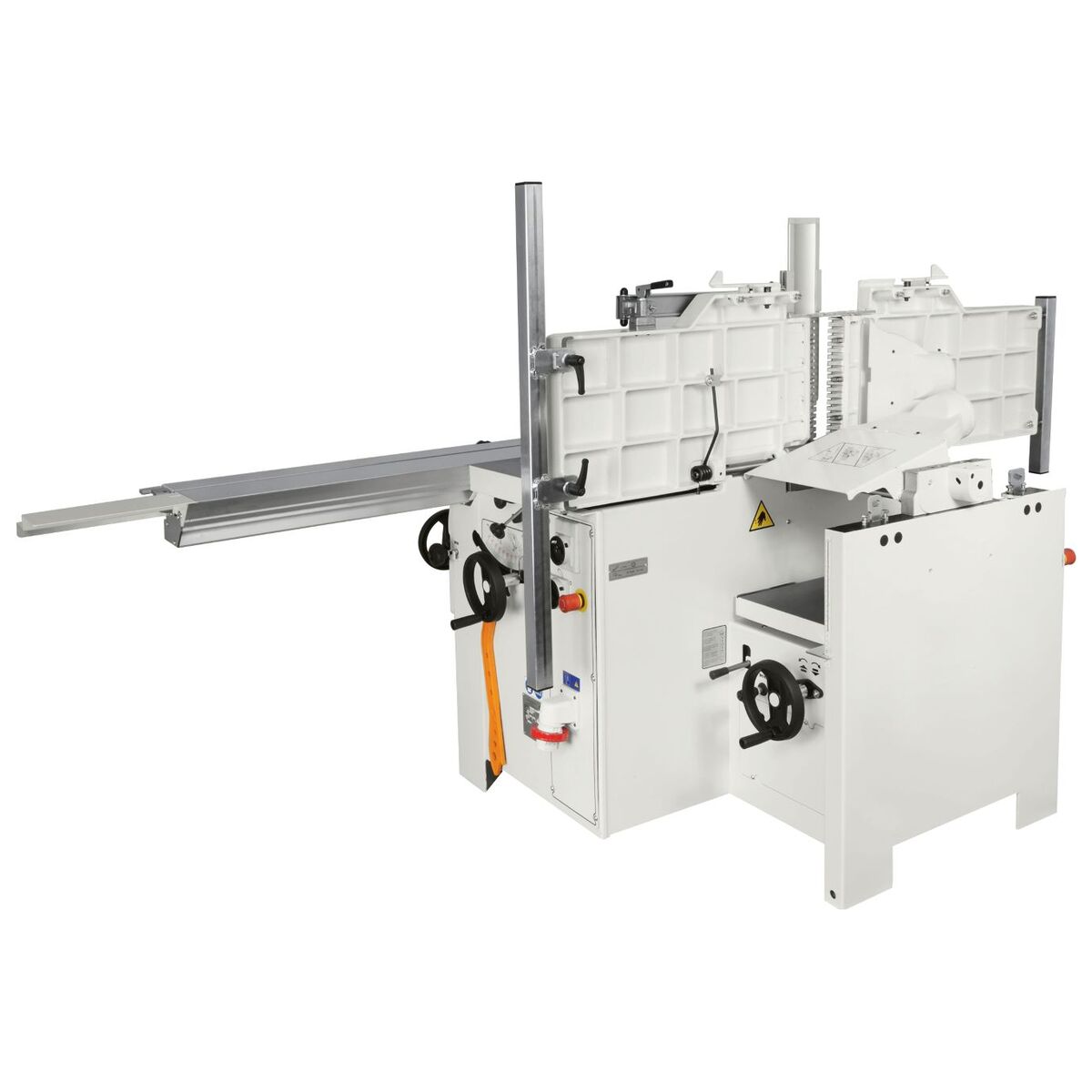

The planer has a 1510 mm jointer bed, while the thicknesser accepts workpieces up to 230 mm high. Both surface tables open inward together during the changeover to thicknessing, providing straightforward access while keeping the machine compact.

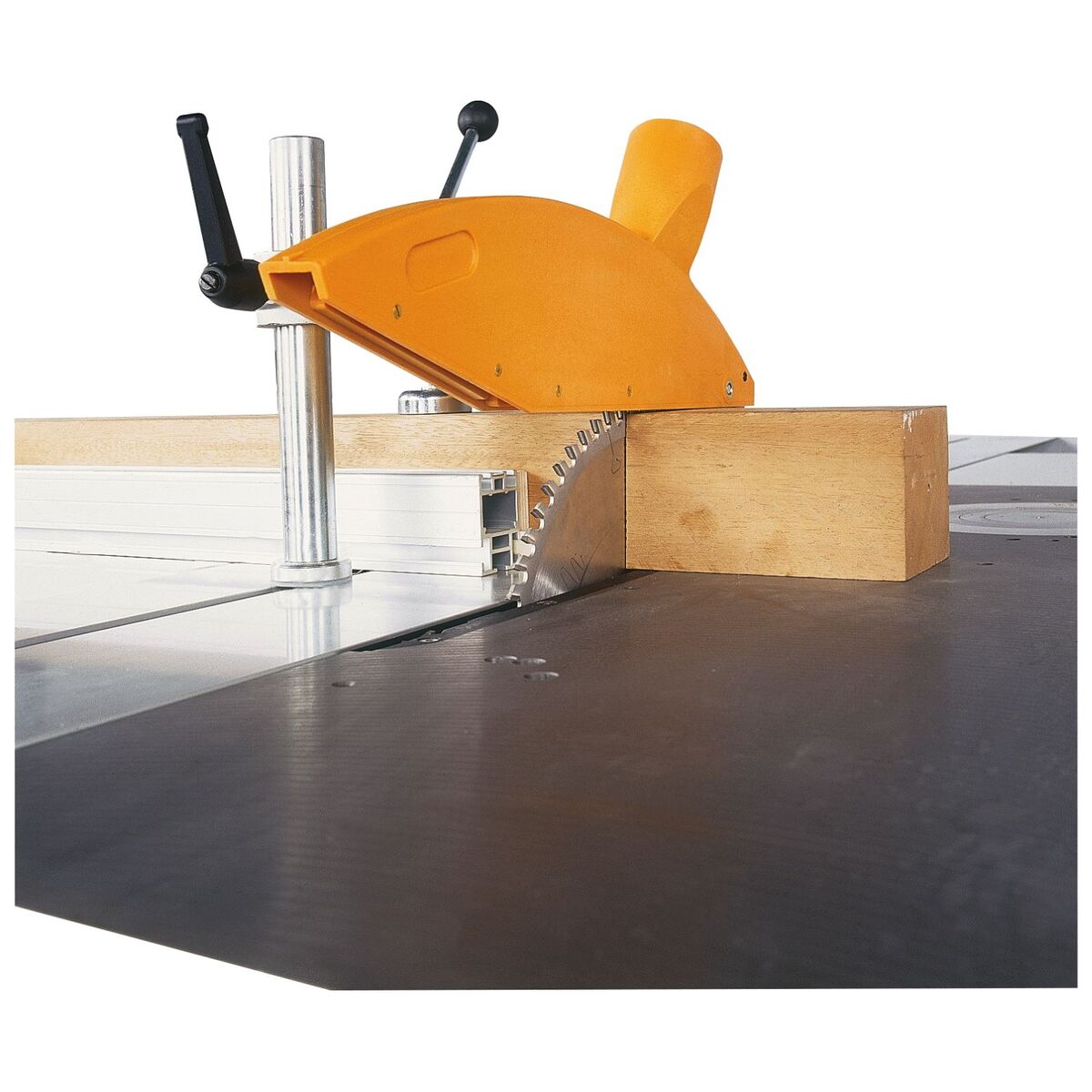

The saw unit accepts blades up to 315 mm and provides a maximum cutting height of 100 mm at 90° or 78 mm at 45°. The spindle moulder offers four operating speeds and accepts profiling tools up to 210 mm diameter. Three independent 4.8 hp single-phase motors provide dedicated power to the machine's operating groups.

Key features and specifications

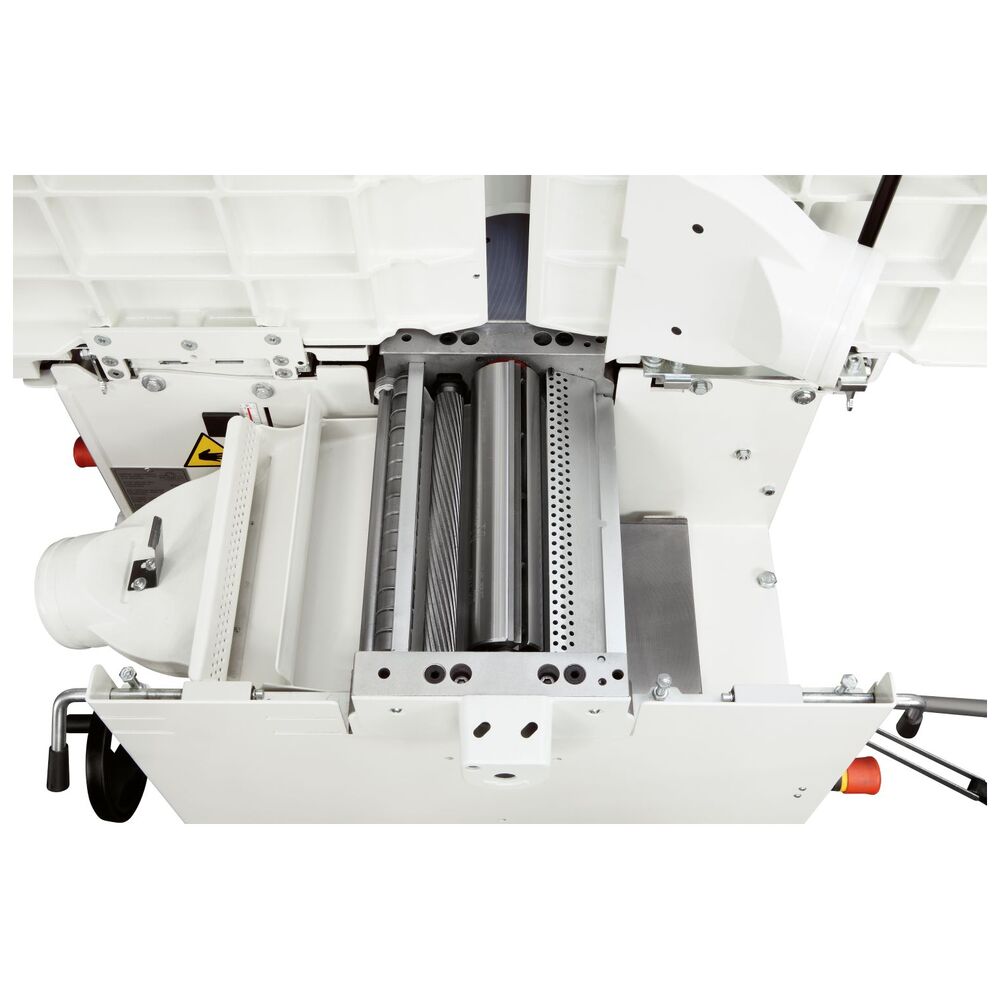

  • 300 mm cutterhead working width
  • 1510 mm jointer bed length

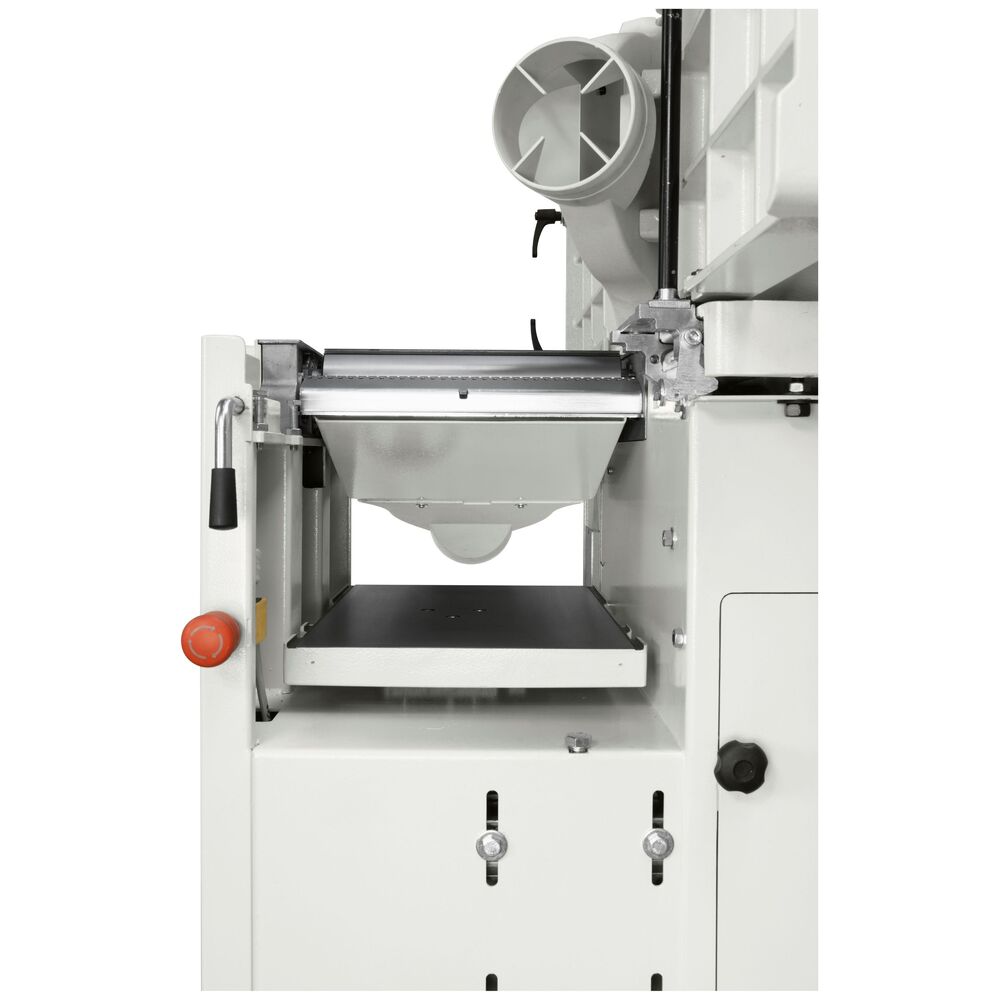

  • Maximum thicknessing height of 230 mm
  • Surface tables open inward together for thicknessing access

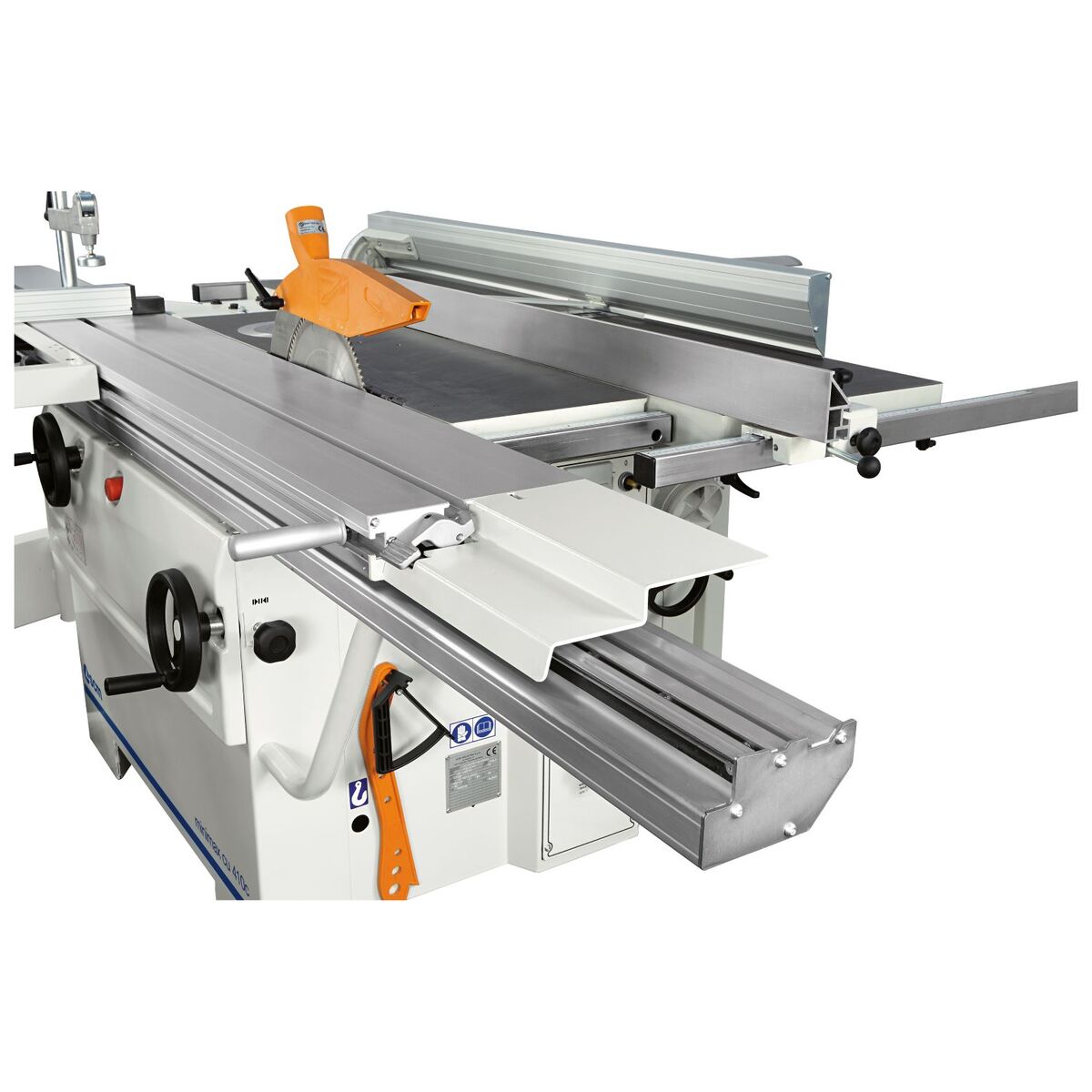

  • 2600 mm sliding-table stroke on the 26X1 configuration

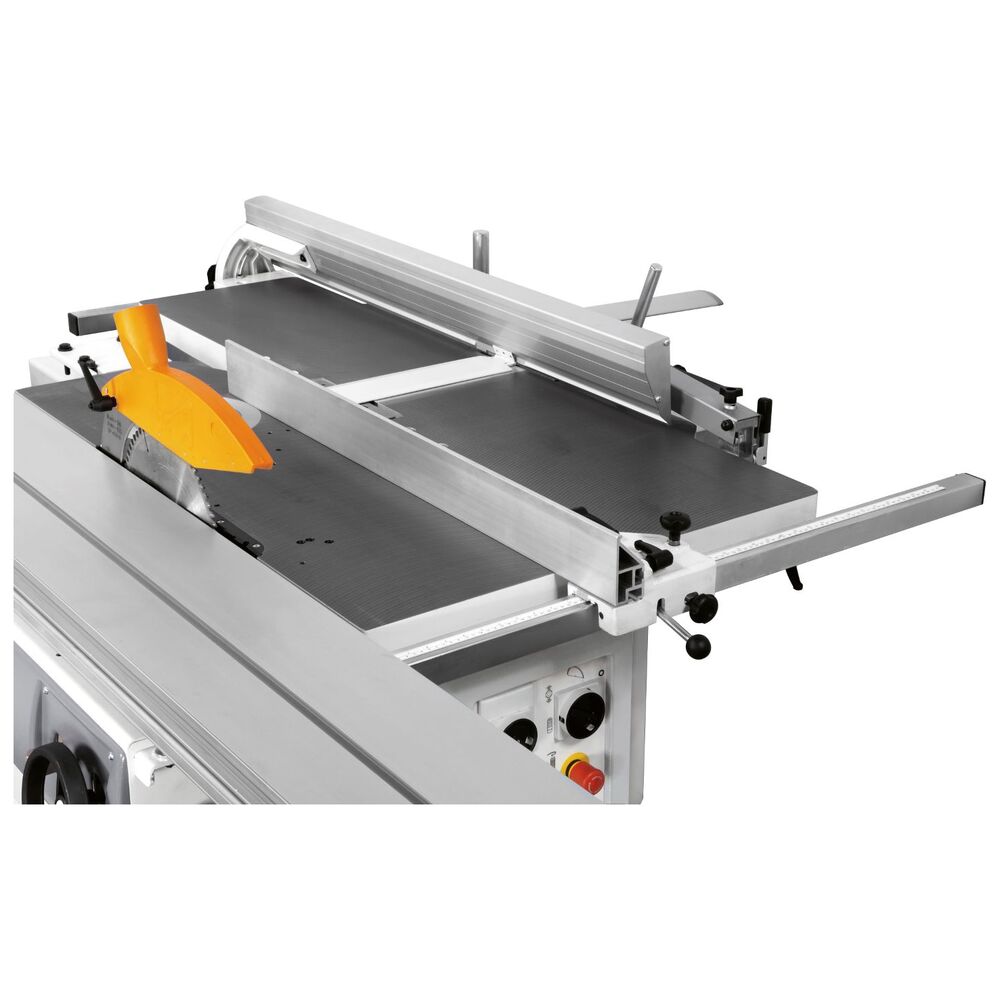

  • 820 mm rip capacity on the parallel fence
  • 315 mm maximum saw blade diameter with scoring blade installed
  • Maximum cutting height of 100 mm at 90° and 78 mm at 45°

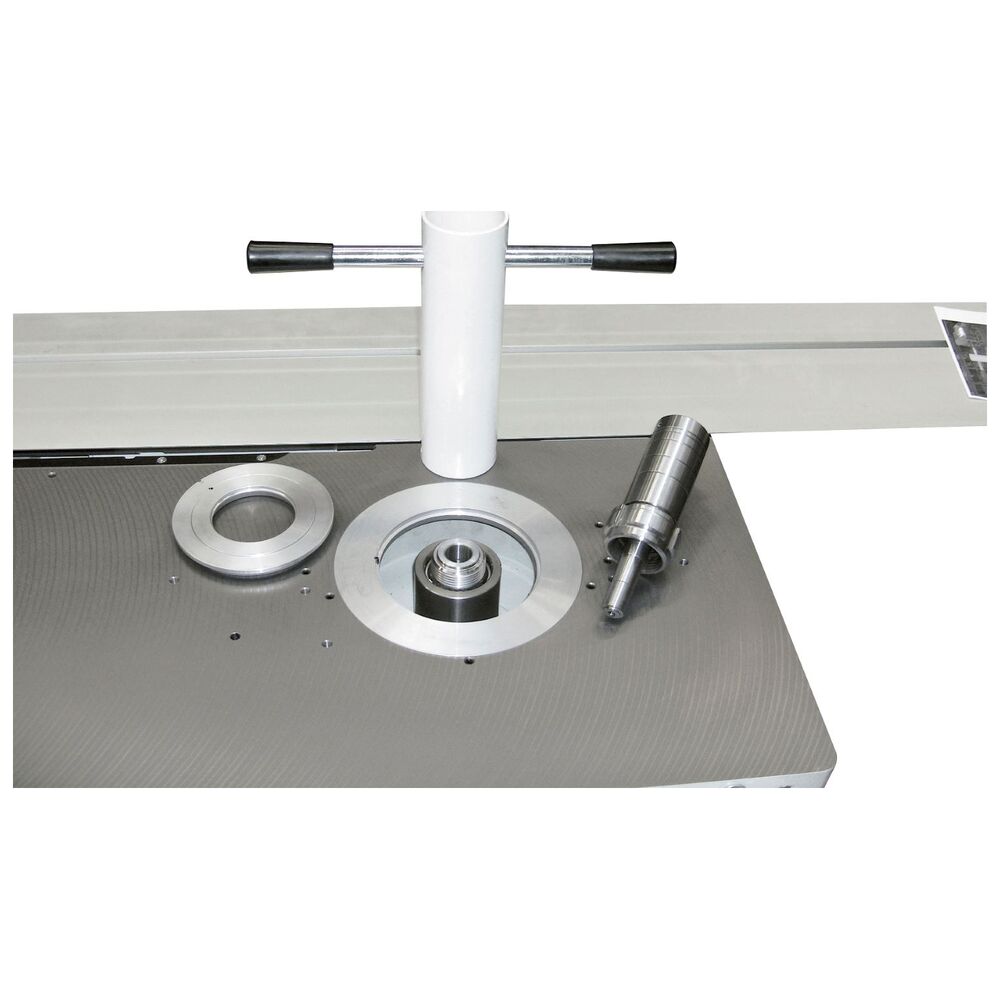

  • 100 mm useful spindle length
  • 210 mm maximum profiling-tool diameter
  • Spindle-moulder speeds of 1700, 4000, 7000 and 9000 rpm
  • Three independent 4.8 hp single-phase motors

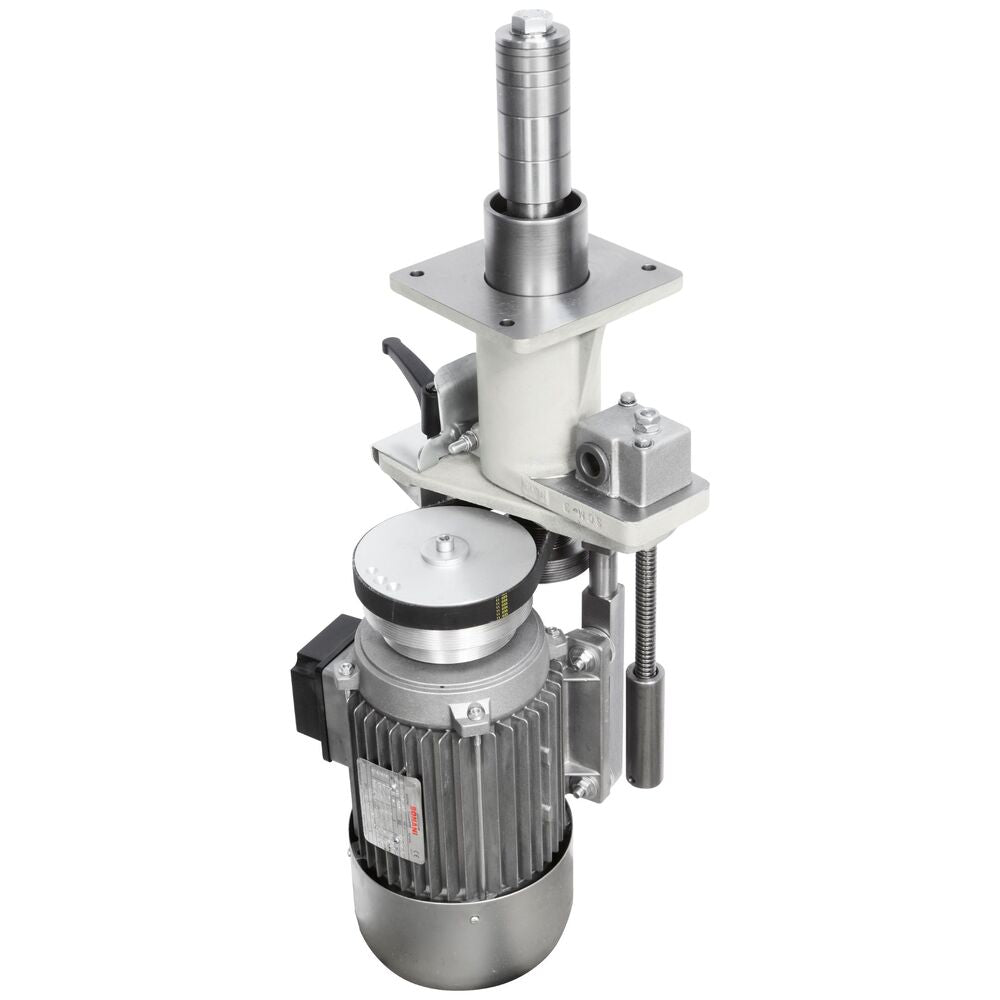

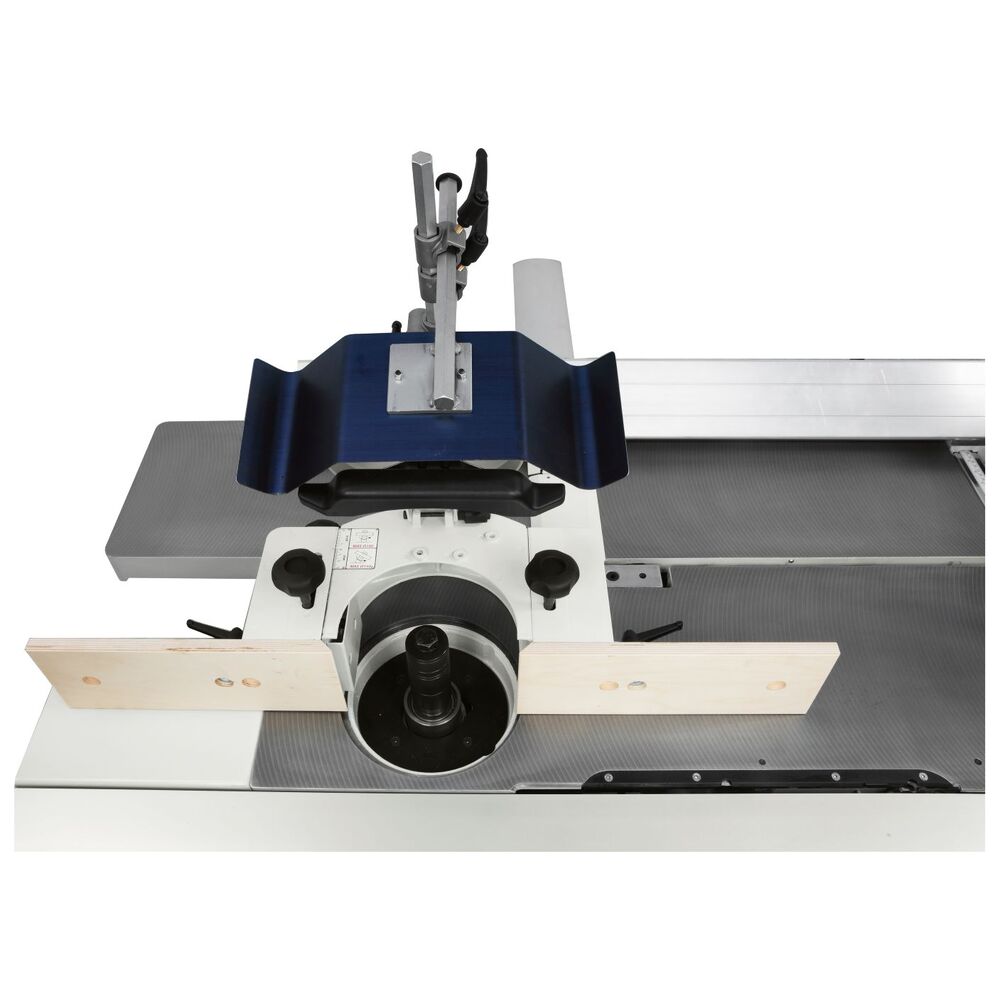

  • Cast-iron spindle-moulder structure with micrometric fence adjustment

Suitable applications

  • Cabinetmaking and furniture production
  • Surface planing and thicknessing solid timber
  • Ripping, crosscutting and panel sizing
  • Cutting plywood, MDF, melamine and veneered panels
  • Profiling, rebating and moulding with suitable spindle tooling
  • Professional workshops where floor space is limited

Images may show optional equipment or accessories. Please confirm the supplied machine configuration and electrical requirements before ordering.
