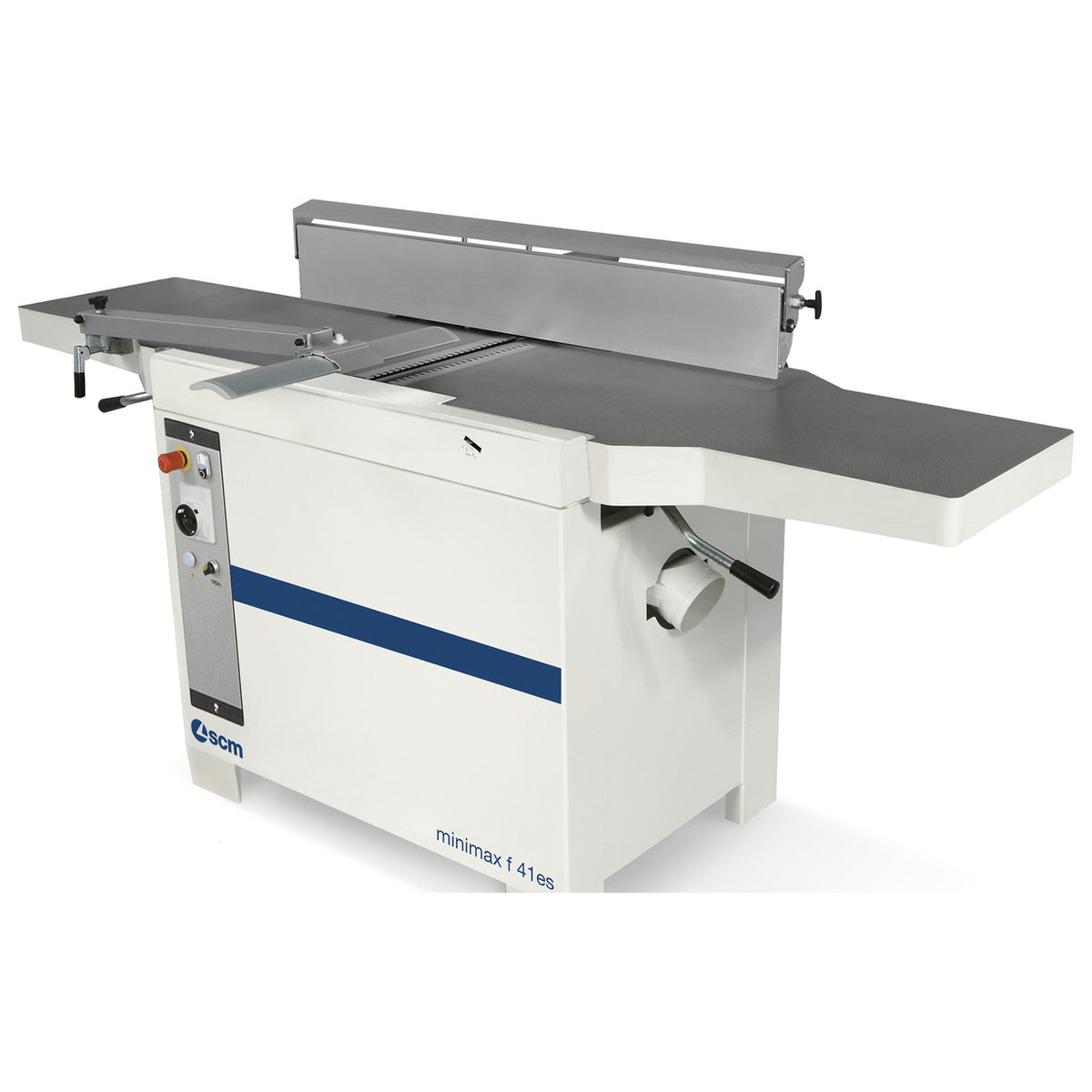

SCM Minimax F 41ES Surface Planer – 410 mm – 400 V

The SCM Minimax F 41ES is a 410 mm surface planer for joiners and woodworking workshops preparing board faces and edges. Its 2200 mm surfacing tables support longer workpieces.

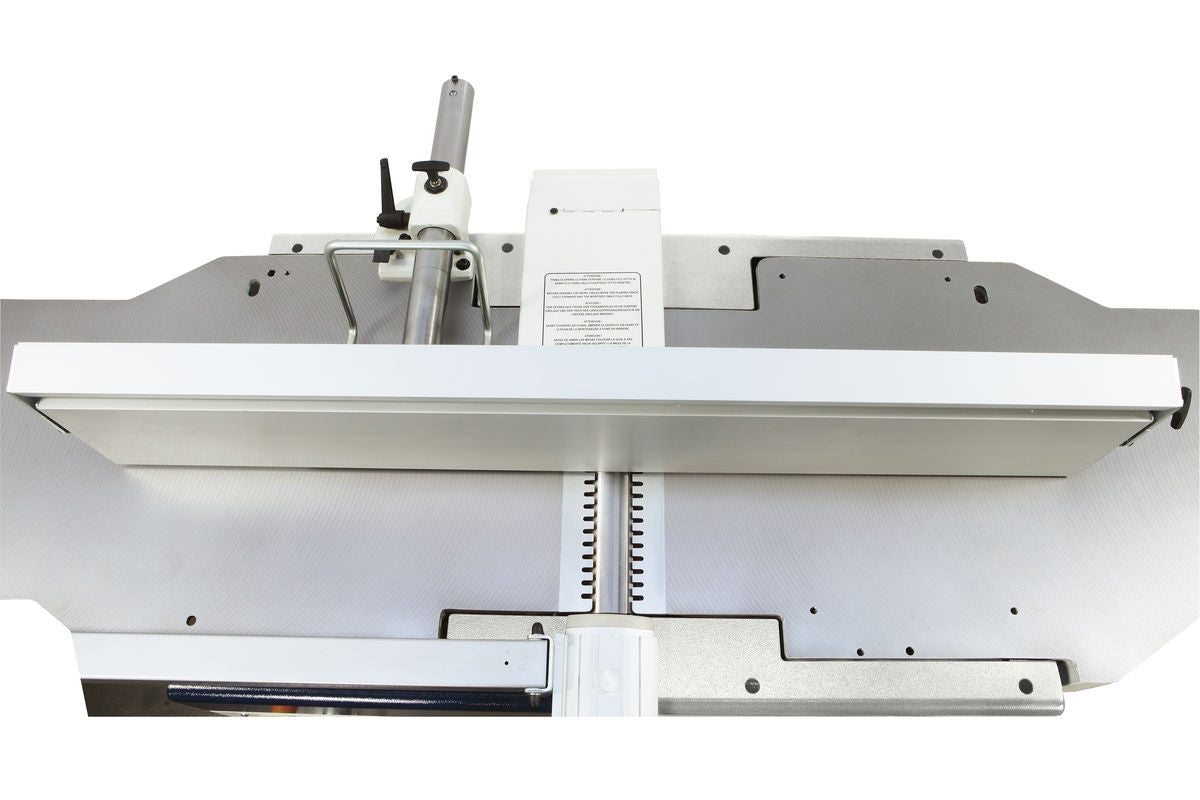

The listed configuration includes a 95 mm Xylent cutterblock with three knife rows and an overturning fence for thin workpieces. A high-rigidity fence uses central locking.

The three-phase motor is rated at 5 kW at 50 Hz or 6 kW at 60 Hz. The machine has a 120 mm dust-extraction outlet.

Key features and specifications

• 410 mm working width
• 2200 mm total surfacing-table length
• 95 mm Xylent cutterblock with three knife rows
• Overturning fence for thin workpieces
• Three-phase motor: 5 kW at 50 Hz / 6 kW at 60 Hz
• 120 mm dust-extraction outlet

Suitable applications

• Jointing board faces and edges before thicknessing or assembly
• Preparing solid timber for furniture, cabinetry and joinery work

Images may show optional equipment or accessories. Please confirm the exact supplied machine configuration and electrical requirements before ordering.
