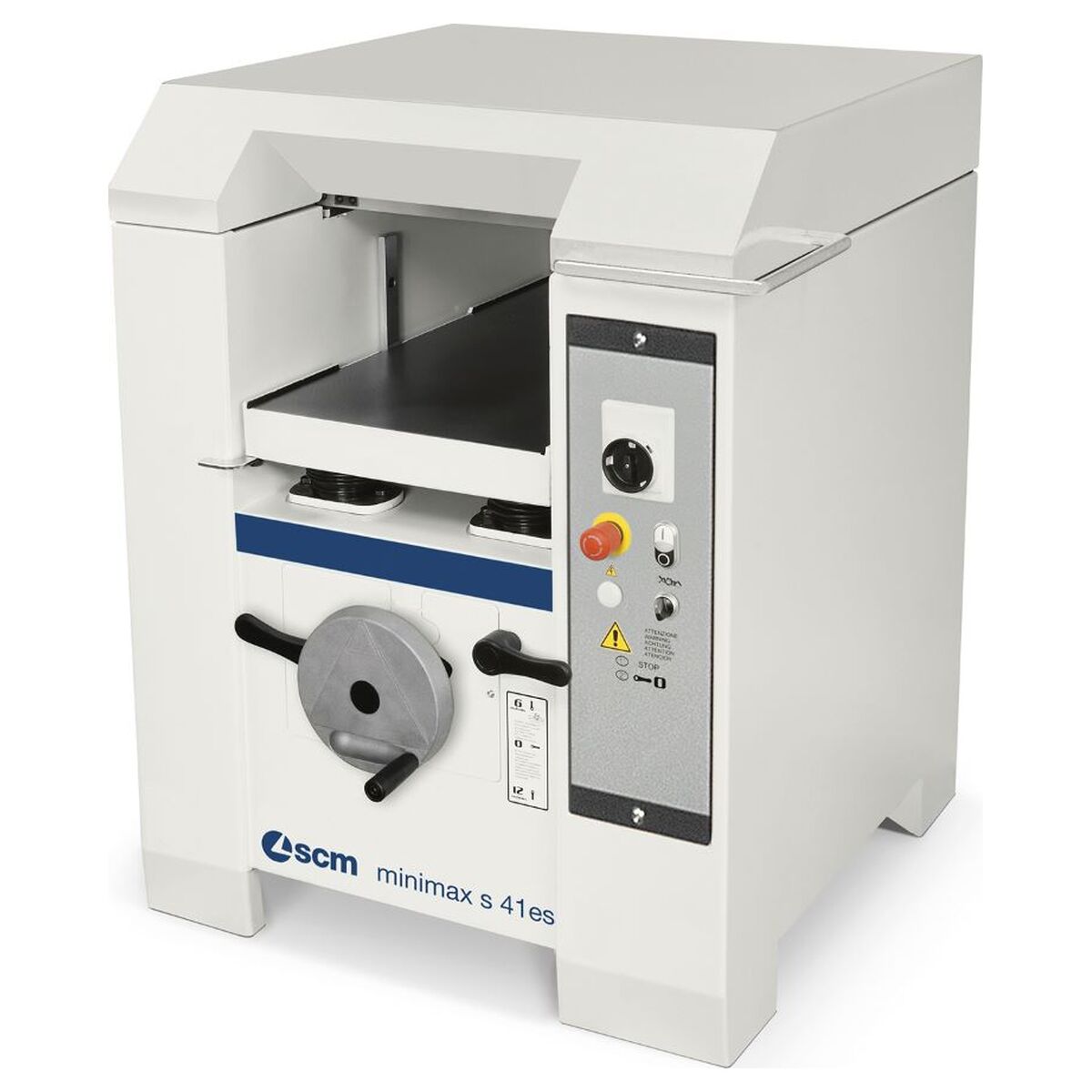

SCM Minimax S 41ES Thicknesser – 410 mm – 400 V

The SCM Minimax S 41ES is a 410 mm thicknessing planer for joiners and woodworking workshops that need repeatable thicknessing across wider boards.

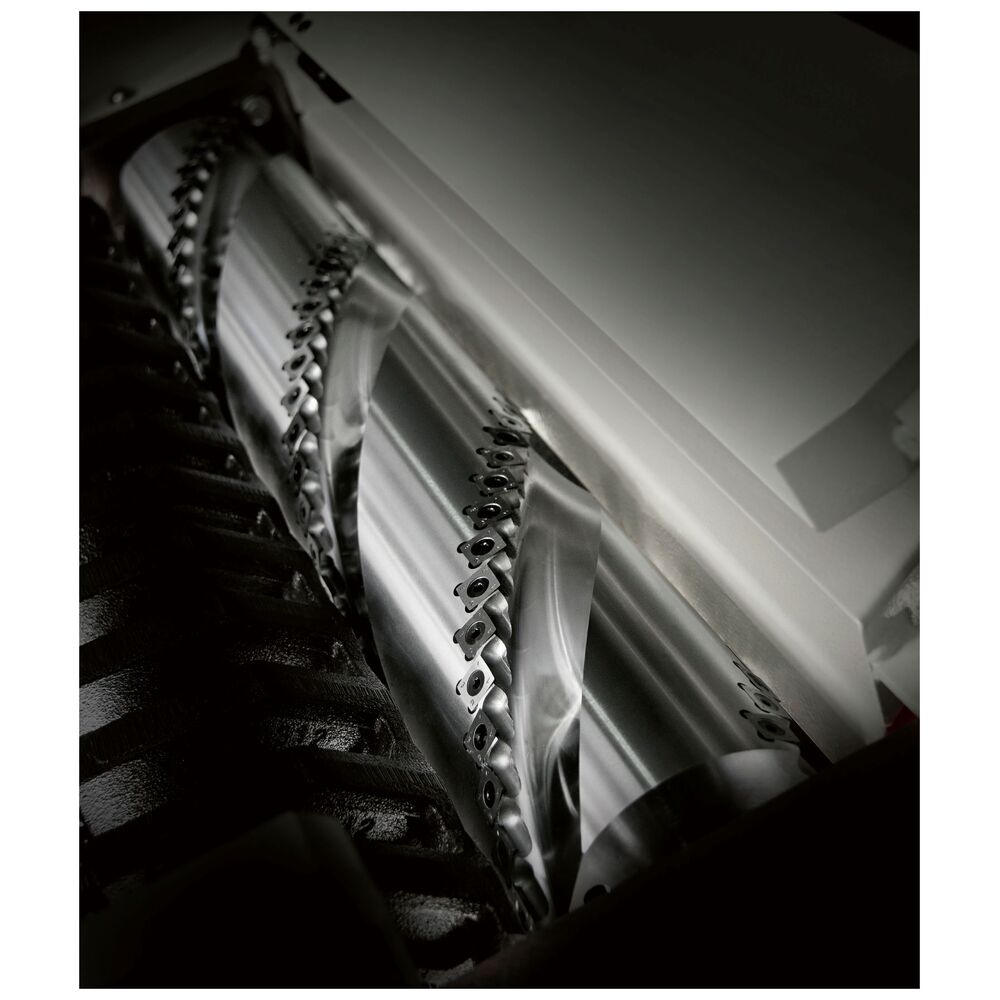

The listed configuration includes a Xylent spiral cutterblock and a rubber-coated thicknesser outfeed roller. It provides 6/12 m/min feed speeds and a working-height range of 3–240 mm.

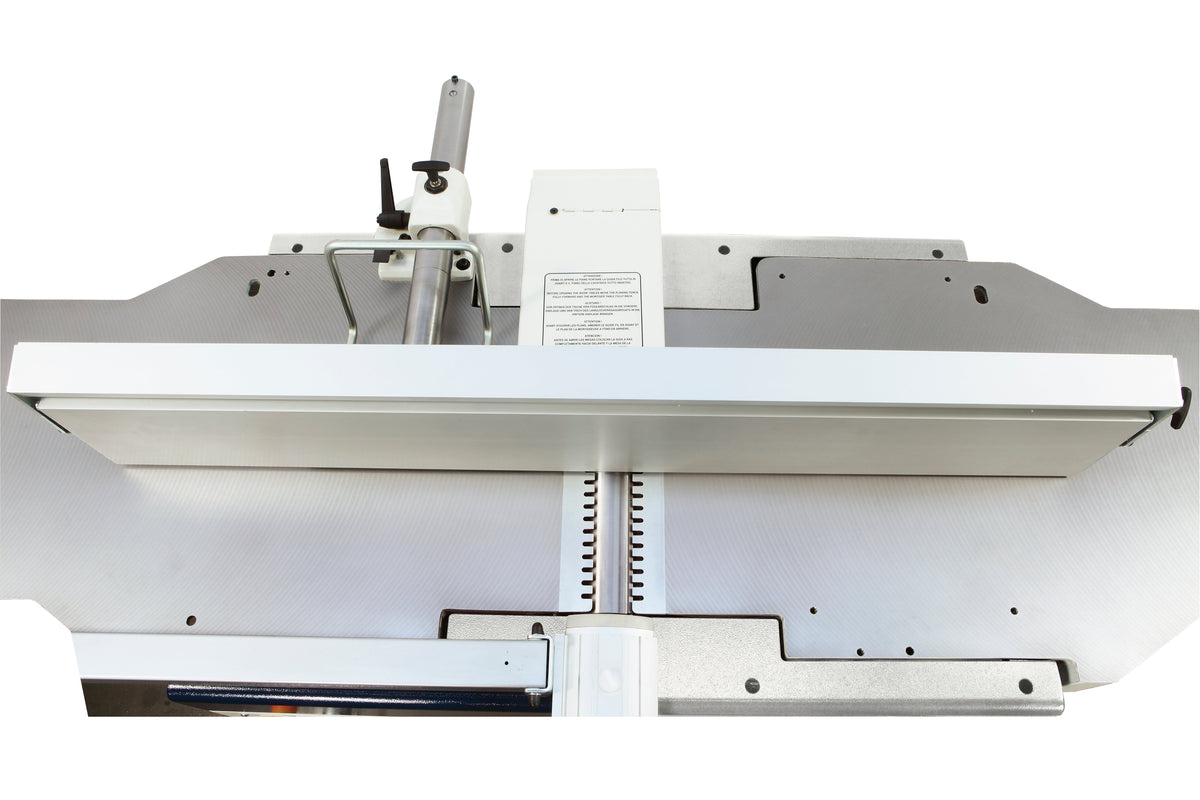

The listed three-phase motor is rated at 8 hp. Its cast-iron thicknesser table is raised on four spindles for stable adjustment.

Key features and specifications

• 410 mm cutterhead working width
• 95 mm Xylent cutterblock; maximum stock removal 5 mm
• Thicknesser table 410 × 775 mm; working height 3–240 mm
• Feed speeds 6/12 m/min
• Rubber-coated thicknesser outfeed roller included in the listed configuration
• Three-phase 8 hp motor

Suitable applications

• Thicknessing solid timber for cabinetry, joinery and furniture parts
• Preparing wider boards to a consistent finished thickness

Images may show optional equipment or accessories. Please confirm the exact supplied machine configuration and electrical requirements before ordering.
