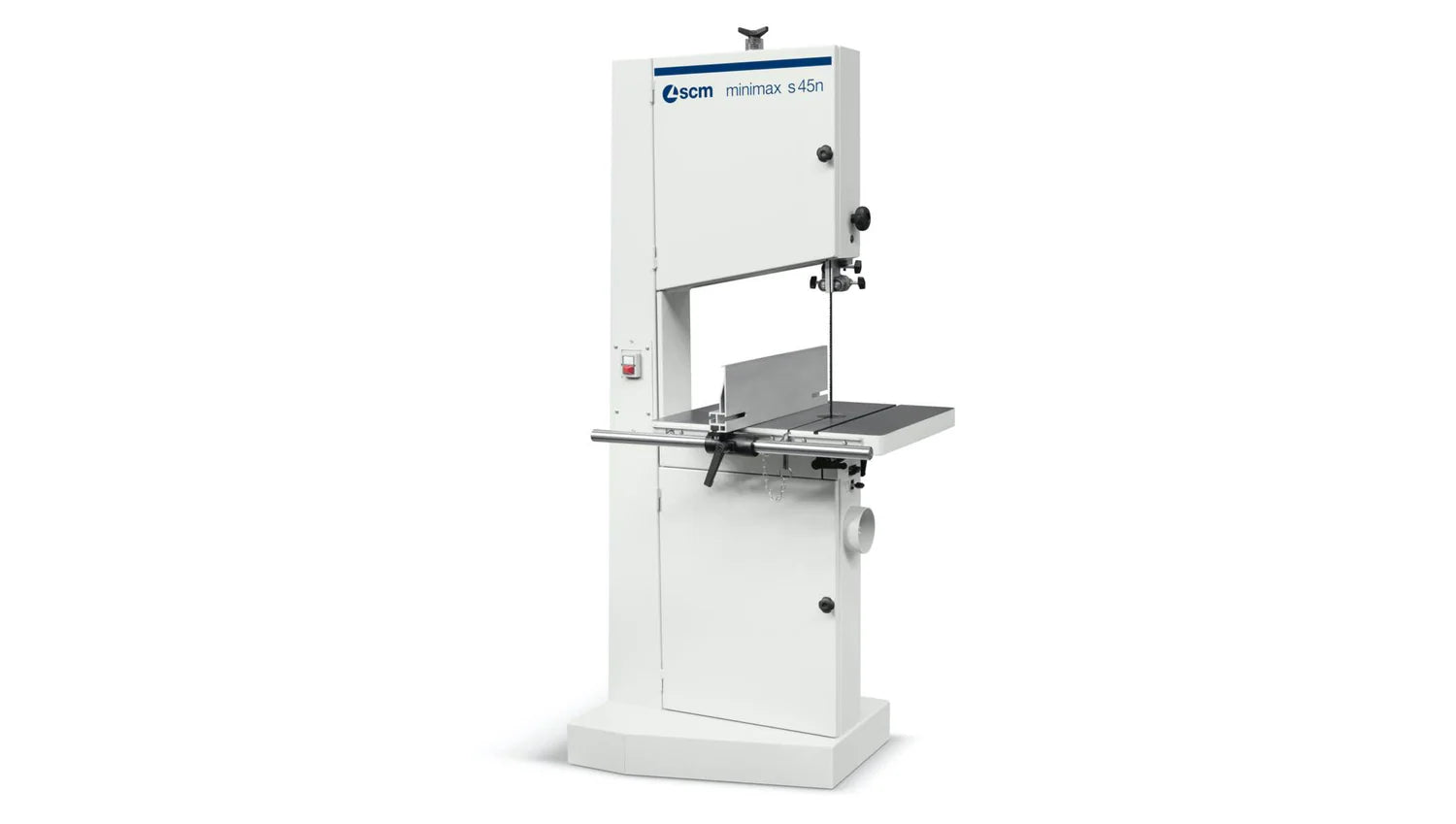

SCM Minimax S 45 N single-phase bandsaw

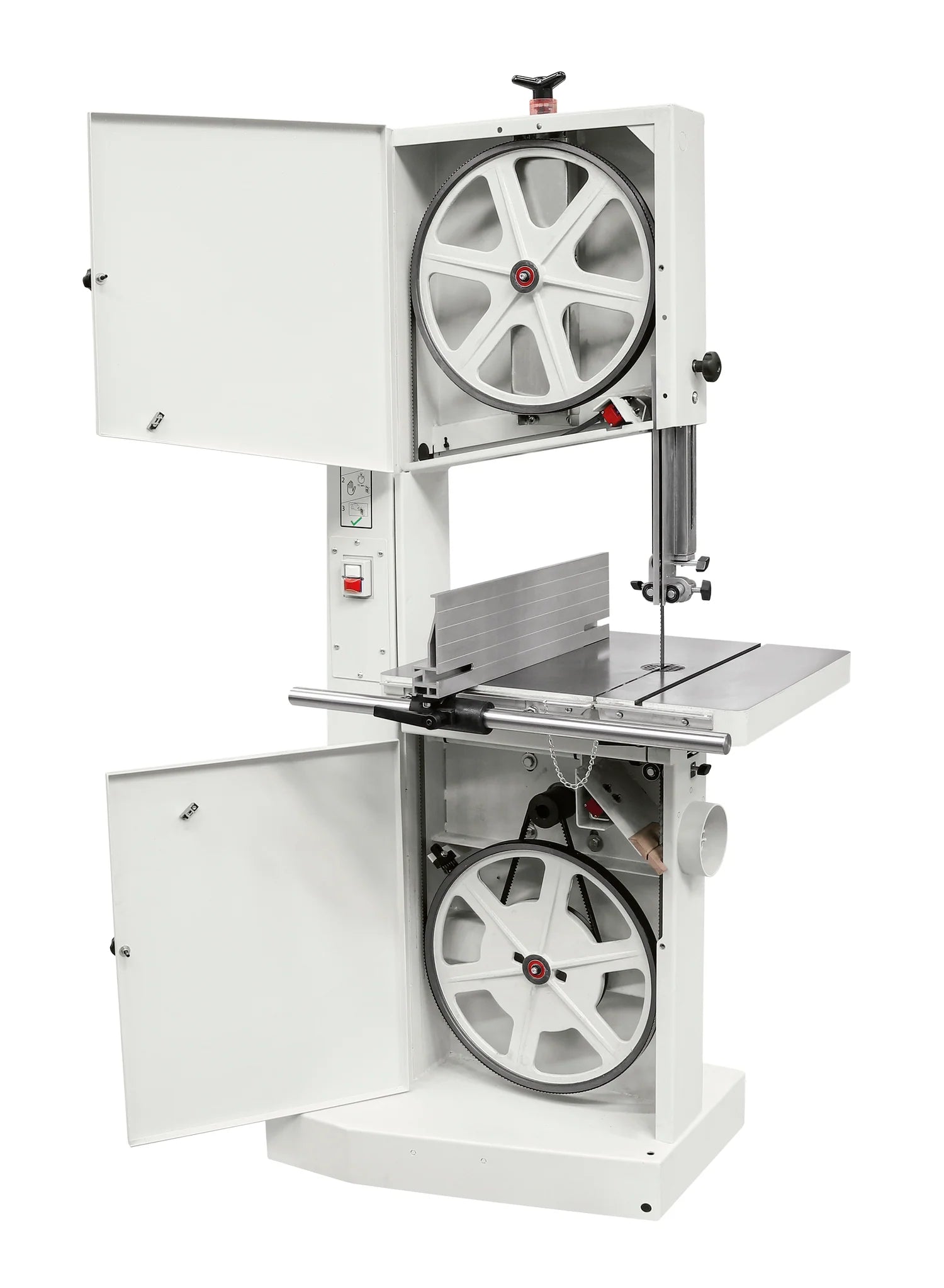

SCM Minimax S 45 N single-phase bandsaw, open view
SCM Minimax S 45 N cast-iron worktable and blade guide
SCM Minimax S 45 N fence for angled bandsaw cuts
SCM Minimax S 45 N mitre fence for angular cutting
SCM Minimax S 45 N single-phase bandsaw
SCM Minimax S 45 N single-phase bandsaw, open view
SCM Minimax S 45 N cast-iron worktable and blade guide
SCM Minimax S 45 N fence for angled bandsaw cuts
SCM Minimax S 45 N mitre fence for angular cutting
SCM Group

SCM Minimax S 45N Bandsaw – 450 mm – 3 HP, 240 V

SKU: S/45 N 1PH
$5,218.00 inc GST

Need delivery pricing or want to discuss this machine? Send us your details and delivery postcode. We’ll confirm current availability, lead time and freight pricing.

Description

The SCM Minimax S 45 N is a compact professional bandsaw for custom furniture makers, joiners and woodworking workshops that need accurate straight and angled cuts without the footprint of a larger industrial saw. This single-phase CE version combines a 450 mm cast-iron wheel with a 300 mm maximum cutting height and 440 mm cutting width for solid timber and general workshop work.

Its large cast-iron wheels and worktable run on sealed-for-life ball bearings, helping maintain smooth, reliable operation. Top and bottom precision blade guides support controlled cutting, while the cast-iron table tilts from 0° to 20° for angled work.

The S 45 N includes a 2.2 kW (3 hp), 50 Hz single-phase motor and a 120 mm dust-extraction outlet. A removable aluminium high-low fence, mitre fence and telescopic blade protection support practical setup and repeatable results.

Key features

  • 300 mm maximum cutting height
  • 440 mm maximum cutting width
  • 450 mm cast-iron saw wheels
  • 600 x 520 mm cast-iron worktable
  • 900 mm worktable height from the floor
  • Worktable tilting from 0° to 20° on the CE version
  • 2.2 kW (3 hp), 50 Hz single-phase motor
  • 700 rpm saw-wheel speed
  • 3690–3742 mm blade length range
  • 6 x 0.5 mm to 25 x 0.5 mm blade dimensions
  • Top and bottom precision blade guides
  • Removable aluminium high-low fence
  • Mitre fence for angular cutting
  • 120 mm dust-extraction outlet

Suitable for

  • Custom furniture and cabinetmaking
  • Resawing and sizing solid timber
  • Straight and angled cuts in wood
  • Cutting plastic and aluminium with the appropriate blade
  • Professional and serious home workshops requiring substantial bandsaw capacity

Images may show optional equipment or accessories. Please confirm the supplied machine configuration, blade selection and electrical requirements before ordering.
